VM Fast Open Multi-bag Filter Housing

Quick opening multiple bag type filter housing - VM series VM series quick opening multiple bag type filter housing, to focus on efficiency and safety and durability of users design, mainly used in more impurities, filter elements need to be replaced frequently and continuous production and fast...


    Design Parameter Table
    NAME: Quick opening multi-bag type   filter housing-VM series
    MATERIAL: S30408,S31608
    MODLE: VMBE030210080-DB
    Design DataCode&STD.GB150.1~150.4-2011

    Reference GB150.1~150.4-2011

    《Pressure Vessels》



    Design Press.(Mpa.g)1.0Mat'of Man Parts

    S30408

    (GB 24511-2009)



    Design Temp.(℃)80Corr.Allow.(mm)0

    Hydro. Test

    Press.

    (Mpa.g)1.25Filter Element Material
    /

    Filte Area.(㎡)1.5Gasket Material
    NBR

    No. Filter Element
    3Full Capacity(m³)0.18

    Filter Element

    Size

    (mm)Φ180*810Empty Weight(kg)165

    Clean Pr.DropMpa0.01Max.Allowed Pr.DropMpa0.1

    Technical Data
    According to the user data tables or after consultation to fill in
    Flow Rate.(m³/h)/Fluid.
    /

    Working Temp.(in/out)(℃)/Fluid Performance
    /

    Working Press.(Mpa.g)/Fluid Density(kg/m³)/

    Pore Size.(μm)/Viscosity(cp)/

    Solid Content.(WT%)/




    NOZZLE LIST
    MarkSizePNConnections Standard

    Flange

     Type

    Face TypeServiceFrom q
    N1DN8016HG/T20592-2009PLRFInlet
    N2DN8016HG/T20592-2009PLRFOutlet
    N31/2"/Rc1/2"(male)//Vent
    N41/2"/Rc1/2"(female)//

    Pressure

    Guage

    N51/2"/Rc1/2"(male)//Drain


    Quick opening multiple bag type filter housing - VM series

    VM series quick opening multiple bag type filter housing, to focus on efficiency and safety and durability of users design, mainly used in more impurities, filter elements need to be replaced frequently and continuous production and fast switching filter, VM filter housing is a sharp tool to improve production efficiency. Filter element replacement is fast and reliable, effectively reducing the impact of the production disruption caused by the replacement components, significantly improve the production efficiency, at the same time, greatly reduce the labor intensity of workers.

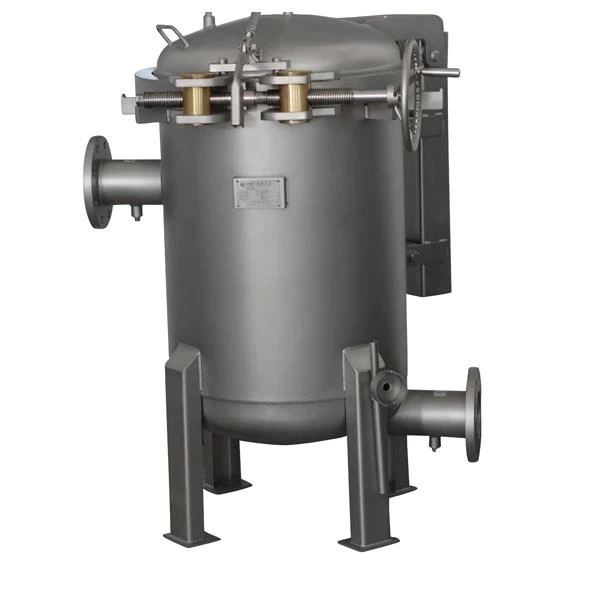

    VM opening cover diagram

    Filter characteristics:

    • The fastest 15 seconds to ON/OFF the filter housing, quickly replace the filter element;

    • ON/OFF in a fixed position, no need to round the filter housing to tight nut;

    • With safety chain design, exhaust pressure to open the filter housing;

    • Gravity balance auxiliary opening mechanism, the single finger can push up to any open        angle can be opened;

    • Vertical open cover, a plurality of compact can be parallel, saving installation space and    cost of piping;

    • With a special bag pressing ring fastening tools, simple operation and labor;

    • Reduce the downtime to the shortest, promote productivity and reduce operating costs;

    • Selection of high quality O type elastomer sealing ring, excellent sealing performance and   sealing life time;

    • The copper nut is designed, the thread is no longer with the thread, and the rotation is     more time saving and labor saving;

    • The liquid part is made of pure stainless steel, excellent corrosion resistance and         durability;

    • 8 models, respectively, three bags, four bags, five bags, six bags, eight bags, twelve       bags, seventeen bags, twenty-three bags;

    • three kinds of import and export orientation layout, convenient design and installation.

    After a period of time, the replacement steps are as follows:

    Step 1: open the safety interlock device to ensure the synchronous pressure relief.

    Step two: rotate the shaft by hand, open the hoop safely

    Step three: use a spring assisted balance mechanism to open the upper cover.

    Step four: the use of pressure ring fastening tools, rotary open pressure ring

    Step five: remove the bag, change into the new bag

    Step six: close the top cover

    Step seven: rotate the shaft by hand.

    Step eight: close the safety interlock device, enter the status of continuing work

    Packaging & Delivery

    Packaging Details: HS code: 8421392200 for bag filter housing 304/316 liquid

    1.Plastic film inside and wooden box outside

    2.mostly pallets

    3.We make package as customer requirement

    4.We are sure our package well protected the goods well.

    5.usually our goods by sea, if small orders, we also can choose the airplane or Ali express or Fedex UPS DHL and so on

    6.We can offer the OEM label in the woven bag if quantity is big

    7.We have our own forwarder but if you have, we also can use your forwarder

    Delivery Detail: Shipped in 7 days after payment

    We control every step for the filter bag housing detail with more than 10 years' experience

    We care every detail of the stainless steel water filter housing, even one small part we wish best quality control You can see the picture detail to see our quality control.

    Bag filter housing

    We have a lot of stainless steel water filter housing each one we focus on small detail to improve the quality control.

    Application:

    Paint, beer, vegetable oil, medicine, cosmetics, chemicals, petroleum products, textile chemicals, photographic chemicals, electroplating solution, milk, mineral water, hot solvent, latex, industrial water, syrup, resin, printing ink, industrial waste water, juice, edible oil, waxes.

    Working principle

    Sffiltech series stainless steel bag filter housing is a kind of novel structure, small volume, simple and flexible operation, energy saving, high efficiency, enclosed operation and strong adaptability multipurpose filtration equipment.

    Sffiltech series stainless steel bag filter housing: filter cylinder simplified, the filter head and quick opening structure, stainless steel filter bag reinforce net main components.

    The filter is a pressure type filtering device, the liquid from the filter shell beside the entrance into the pipe bag and device in strengthening network, liquid infiltration had need of degree of fineness of the bag that can be qualified filtrate bag itself is a, impurity particles is capture filter bag. The replacement of the filter bag is very convenient, without the basic filter material consumption.
