SFFILTECH is a brand supplier in dust collector bag house filtration, liquid bag filter filtration, and HVAC filtration systems.

Dust Filter Bags Suppliers for Business for Filtration 1

Dust Filter Bags Suppliers for Business for Filtration 2

Dust Filter Bags Suppliers for Business for Filtration 3

Dust Filter Bags Suppliers for Business for Filtration 4

Dust Filter Bags Suppliers for Business for Filtration 5

Dust Filter Bags Suppliers for Business for Filtration

Inquiry

Company Advantages

· SFFILTECH dust filter bags suppliers is manufactured using high-quality raw materials together with a mix of man and machine.

· This product has good performance and long service life.

· Comprehensive service about the dust filter bags suppliers has helped SFFILTECH win more customers.

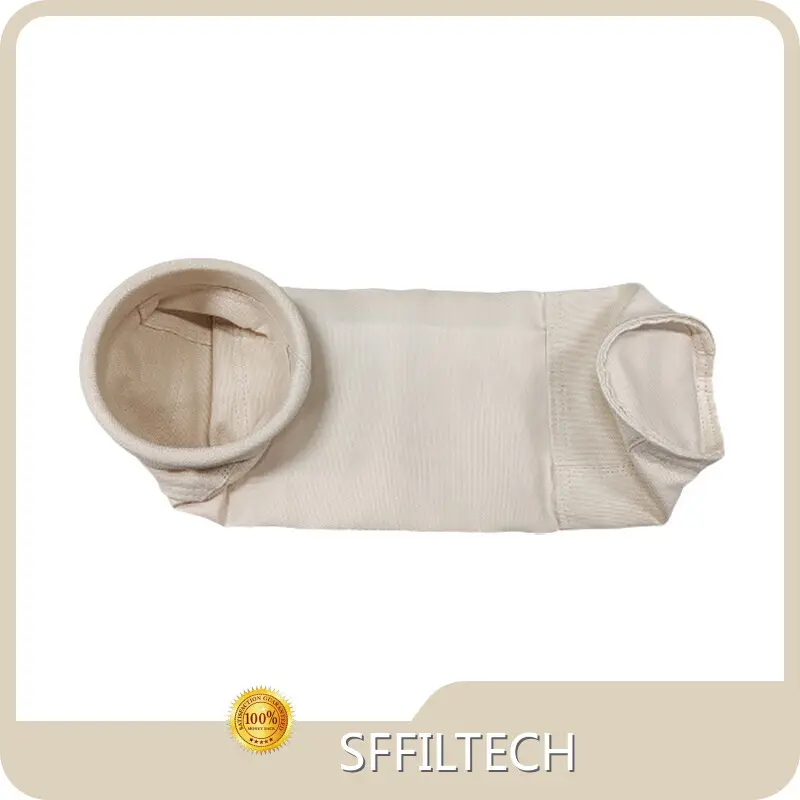

What is a fiberglass filter bag?

Fiberglass filter bags represent a cutting-edge solution in industrial filtration, leveraging the exceptional properties of fiberglass fibers. Renowned for their high tensile strength, thermal resistance, and chemical inertness, fiberglass filter bags excel in diverse applications within industrial filtration systems. These bags, integral to dust collectors and air pollution control equipment, play a pivotal role in mitigating environmental impact. The robust fiberglass filter media ensures effective particle capture, making them ideal for high-temperature environments, industrial processes, and flue gas treatment. Their versatility extends to applications in industrial dust collection, environmental protection, and gas filtration, where they demonstrate longevity and efficiency. Fiberglass filter bags, with their advanced filtration capabilities and durability, stand as a cornerstone in the quest for cleaner and healthier industrial environments.

微信图片_20231013151642

微信图片_20231013151637

微信图片_20231013151647

Performance of fiberglass filter bag

Good heat resistance, suitable for long-time use under a temperature below 280 deg.

Good dust peeling performance, low power coindumption for ash removal.

N03

The size of the fiberglass filter bags is more stable, no fiber shrinkage under the high temperature.

N04

Good chemical resistance: except hydroelectric acid strong acid, and strong alkaline, it is more stable than other filter medium.

N05

The fiberglass filter fabric is not absorbing moisture and humidity

N06

Filtering efficient of the fiberglass filter bag can be over 99.5%etc and catch the dust below the PM2.5, we can get the 20mg air release.

N07

High strength of the fiberglass filter cloth, can be more than 3000N/5*20cm

Product description

Glass fiber filter cloth is made of the fiberglass yarn, with special treatment like graphite, silicon, ptfe dipping, against acid treatment and other chemical treatment. It is an ideal high temperature resist filter cloth the fiberglass filter bags are widely used in industrial dust clean area, bag house, air pollution and valuable dust recycling, etc.

The performance of woven glass fiber filter media the performance and service life of glass fiber filter media vary with the type of yarn, fiber diameter, twist, density and fabric structure. The influence of fabric structure on filter material performance is as follows.

① Wear resistance: Plain>twill>forged grain.

② Softness: Forged grain>twill>plain grain.

③ Void ratio: Forged grain>twill>plain grain

Two factors effect the choice of filter bags

Two factors effect the choice of filter bags: Temperature: As the main component of dust collector, it is very important whether selected filter bag adapt to the flue gas temperature . Such as, the heat resistance of filter material exceeds the flue gas temperature too much, which will cause the waste of high temperature filter material as well as big investment in equipment. If it is lower than that of flue gas, it is possible to cause the burning of bag. So how to select the filter material according to the flue gas temperature? It can be divided into the following according to the temperature: normal temperature filter material: below 130 degrees Celsius, medium temperature filter material 130~180, high temperature filter material 180~280.

Flue gas composition: It includes the content of dust, specific gravity, particle size, viscosity or not, the water content in the flue gas and other parameters. All of these decide the way of cleaning, filter bag material treatment, filtration velocity. Usually, if the dust is dense, sticky and light, we usually choose pulse bag house and pulse bag filter. In addition, the filtration velocity is control more than 1.2m /min, sometimes 1m /min. As well as, the Filter material treatment is generally membrane, water and oil repellent, anti - static, oriented anti adhesive treatment.

Dust Separation Procedure

Different dust separation procedures require different weights and air permeability values for filter media.

Rules:

- The more effective the cleaning process, the more compact and heavier the filter medium can be.

- The higher the emission control standards, the heavier the filter medium should be.

Tops: If these factors are well considered in advance, running cost like electricity for the fan or pressured-air for the cleaning pulses can be saved later on in a great amount.

Dust Separation Procedure	（g/m2） Weight	Air Permeability
Dust Separation Procedure	（g/m2） Weight	mm/s @200Pa	l/(dm²min) @200Pa
Intermittent Shaking	300-350	667-1000	400-600
Shaking- and reverse air	350-450	417-667	250-400
Low pressure cleaning	400-500	250-583	150-35
Pulse Jet	500-650	83-250	90-150

Filter bags material character

Resistance of Synthetic Fiber to the Influence of Chemicals and to Temperatures
Filter Type	Continuous Temperature	Peak Temperature	Resistance to Hydrolysis	Resistance to Acids	Resiatance to Alkalis	Resistance to Oxidation	PH Value	Application	Remark
PP	90℃	95℃	Excellent	Excellent	Excellent	Restricted	1-14	Applicable to food, flour, sugar, fertilizer, electroplating and pesticide industries	Restricted resistance to oxidation, but excellent resistance to hydrolysis
Co-Acrylic	115℃	120℃	good	moderate	moderate	good	6-13	Applicable to dergent industry and coal powder collection	Good resistance to hydrolysis
Co-Acrylic	125℃	140℃	good	good	moderate	good	3-11	Applicable to detergent, waste incineration, asphalt, spray dryer, coal mill and power plant industries	Good resistance to hydrolysis
Polyester	150℃	150℃	Restricted	moderate	Restricted	good	4-12	Applicable to mine, limestone, cement, iron and steel induestries,alumina delivery, electrolytic aluminium, non-ferrous metal production, wood processing, food processing and pharmacy industry.	Good resistacne to oxidation, while limited resistance to acids and alkalis. Serive life will be affected by water content under high temperature
PPS	190℃	200℃	Excellent	Excellent	Excellent	moderate	1-14	Applicable to the working conditions with low oxidation gas from coal-fired boiler, waste incineration, metal smelting and chemical industries	Moderate resistance to oxidation, but excellebnt resistance to acids and alkalis.
M-Aramide	200℃	220℃	moderate	moderate	moderate	moderate	5-9	licable tp asphalt, non-ferrous metal production, ceramic, glass industries, Kilin in cement factories and blast furnace in steel factory	Moderate resistance to oxidation. Characteristics will be influenced by water content under high temperature.
Polyimide	240℃	260℃	good	moderate	moderate	good	3-13	Applicable to the working condition with corrosive gas, such as chemical, metal smelting, waste incineration industries, cement kiln and coal-fired boiler	Excellent resistance to high peak temperature
PTEE	250℃	280℃	Excellent	Excellent	Excellent	Excellent	1-14	Applicable to the working condition with high corrosive gas and high temperature, such as chemical industry, coal-fired boiler, waste incineration industry and non-ferrous metal production	Excellent resistance to all chemical influences.

Specification

No.	Material	Weaving type	Weight (9/m2)	Air permeability (cm3 /cm2/s @ 127Mpa)	Tensile Strength (N/25cm )		Finish	Application
No.	Material	Weaving type	Weight (9/m2)	Air permeability (cm3 /cm2/s @ 127Mpa)	Warp	Weft	Finish	Application
1	E-glass (T)	Double twill	760±20	2-5	>2400	>2000	PTFE Membrane	Cement industry: 1. CaO dust produced in the decomposition process of CaCO dust which is not decomposed safely from the cement raw meal in the decomposing furnace; 2.Gases such as SO, NO, CO, CO produced in the calcination process of pulverized coal for calcination; 3.The exhaust gas discharged from the cyclone reaches a high temperature of at least 320°C and is dry; 3.The dust reaches a density of 40-130mg/Nm3, with 90% in a dust particle diameter less than 10pm; with a NO content of less than 250PPm; a NO content of 100- 1700mg/Nm3; 4. CO and CO2 contents sometimes fluctuate with the calcination sufficiency of pulverized coal;
2	E-glass (T)	Double twill	760±20	2-5	>2400	>2000	PTFE Membrane
3	E-glass (T)	Double twill	760 ±20	<30	>2400	>2000	PTFE Dipping
4	E-glass (T)	1/3 twill	340±15	2-5	>1300	>800	PTFE Membrane +Acid resistance	Iron alloy industry Features of working conditions of iron alloy 1. High and significantly fluctuated temperature of fume, unstable working conditions 2. Light and fine dust, with 90% of ferrosilicon dust in a particle diameter ≤1μm 3. High adhesion of dust tends to cause dust cake 4. The filtration medium is required to be anti-corrosive, heat-resistant with good dust-cleaning performance.
5	E-glass (T)	1/3 twill	450±15	<33	>2000	>1000	PTFE dipping, silicion and graphite
6	E-glass	Double weft	550±15	<45	>2000	>2000	graphite
7	E-glass	Double weft	550±15	2-5	>2000	>2000	PTFE dipping + graphite
8	C-glass	Double weft	550±15	<45	>2000	>2000	graphite
9	E- glass+ptfe	Double twill	820 ±2	2-5	>2000	>2000	PTFE membrane	Waste incineration industry Features of working conditions of waste incineration 1. Waste contains complex and seriously harmful components, with high requirements for treatment; 2. Unstable temperature and amount of fume, at a temperature ranging between 140°C-260°C 3. High temperature of fume up to 60%, tending to cause bag sticking 4. The fume contains dust of high density up to 50g/m3, being light and fine 5. The fume has a relatively high content of corrosive substance, causing rise in acid dew point
10	Refrasil	Double twill	760±20	<30	>2400	>2400	PTFE dipping
11	Refrasil	Double twill	760±20	2-5	>2400	>2400	PTFE membrane
12	E-glass*ptft	Double twill	820+20	2-5	>2000	>2000	PTFE membrane	Power industry Features of working conditions of coal-fired power plant 1. Relatively high density of dust at the inlet of deduster 2. The fume has a high content of components such as SO2, NO, O2, O3, which have a strongly destructive effect on the filtration medium 3. Fume amount is exposed to significant fluctuation with the changes in coal type and power generation load 4. Filtration velocity is generally about 1.0, the dust cleaning is mostly conducted by means of pulsed dust cleaning or rotary back blow
13	Refrasil	Double twill	760±20	<30	>2400	>2000	PTFE dipping
14	Refrasil	Double twill	760±20	2-5	>2400	>2000	PTFE membrane
15	Refrasil	Double twill	760±20	<30	>2400	>2000	Acid resistance
16	Refrasil	Double twill	760 ±20	2-5	>2400	>2000	PTFE membrane + Acid resistance
17	E-glass (T)	1/3 twill	480±15	<30	>2000	>1200	Acid resistance	Chemical industry Features of working conditions of chemical industry 1. With a high initial density, carbon black is a nanoscale substance with a small particle diameter, specific gravity and strong adhesion. 2. The working temperature of main filter ranges between 270°C-280°C, that of waste filter is around 250°C. 3. The oil pre-heater has a working temperature >350°C, about 400°C, which requires cooling by water mist spray, while with a large amount of CO, SO2, SO3: contained in fume, it will generate sulfurous acid. 4. Flammable and explosive gas is involved, with a large amount of water vapor, and 1 ton of water sprayed can produce 1600m3 of water vapor 5. Inlet pressure 200pa, outlet pressure 3,500-4,000pa, counter-blowing pressure 5,000pa
18	E-glass	Double twil	550±15	<45	>2000	>2000	graphite

Thickness (mm)	Diameter (mm)	Length (mm)	Weight (g/㎡)
1~2.2	120, 130, 150, 160, 180, 230, 250, 300	2000, 3000, 5000, 6000, 7400, 8000, 10000	350, 480, 550, 760, 820
Most commonly used dimensions	150mm1500mm, 133mm2000mm, 133mm*2500mm
Most commonly used weight	550g, 760
We can customize diameter, length, and weight for you

Product Description

The cement industry Cement kiln character Cement raw material in the decomposition oven is not completely decomposed into caco3 dust Together with CaO dust during the decomposition of the caco3 produced For burning pulverized coal produced in the combustion process so2 nox co co2 and other gases Kiln temperature exhaust gas from the cyclone out of more than 320 degrees drying gas Dust concentration of dust particle size less than 10um accounted for more than 90% Sometimes co content according to each of the combustion fluctuate

1. Garbage incinerator, etc. It can purify flue gas with high humidity, high temperature, and high water content, strong chemical corrosively and high viscosity dust. The treatment of PTFE filter bags, especially the treatment of waste medical supplies and household garbage, can solve the problems of high-temperature combustion bags, high viscosity dust paste bags, and chemical gas corrosion bags and so on. 2. Purification of industrial smoke and dust in power plant boilers burning high sulfur coal with acid, alkali and corrosive chemical gases; PTFE filter bag mainly has the advantages of non-sticking bag, easy dust removal, small running resistance of equipment, long service life, etc. 3. Flue Gas Purification of Blast Furnace Gas in Iron and Steel Smelter. PTFE filter bag is mainly used to solve the corrosion problem caused by chemical gases such as high temperature, high humidity, paste bags below dew point and high-temperature sulfur.

Application

It can be used for a long time under the high temperature of 240 ℃, and the temperature resistance in a short time can reach 280 ℃. It is widely used in the high temperature flue gas filtration of steel, cement, power, non-ferrous metals, garbage incineration, asphalt concrete mixing, chemical industry and other industries. It is suitable for pulse and high-speed reverse blowing dust removal methods, and is the most widely used filter material for high temperature bag filter.

微信图片_20231013151647

微信图片_20231013151652

Company Features

· SHANGHAI SFFILTECH CO., LTD is recognized as one of the biggest dust filter bags suppliers factories in China.

· SHANGHAI SFFILTECH CO., LTD has a group of highly educated, international, and professional dust filter bags suppliers talents.

· We will embrace the principles of environmental sustainability across the board. We are making some tremendous efforts in going green by slashing our energy usage and supporting green energy projects.

Product Comparison

Compared with similar products, our dust filter bags suppliers's outstanding advantages are as follows.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
