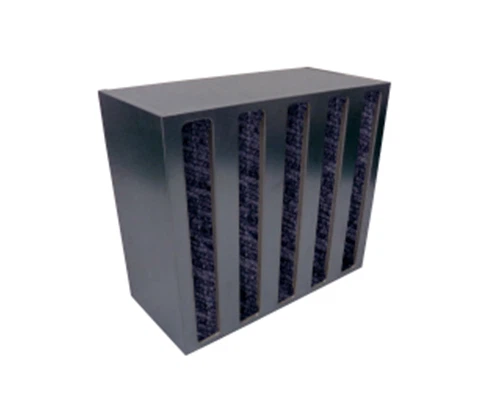

Superhelen Molecular Filter
Specification
Type: Super-Helen molecular filter
Media: Pleated ion exchange media, pleated impregnated carbon media for alkaline, acidic and VOC gas removal
Frame: ABS/Galvanized steel/Stainless steel
Separator：Hot melt glue
Sealant：Polyurethane
Temperature：40ºC maximum in continuous service
Humidity:〈70%RH
Application: Molecular filters for most air conditioning system,widely used in semiconductor industry,bio-pharmaceuticals, genetic engineering,precision machinery,instrumentation and museums.
Advantages
Double-layer non-woven with high quality media inside,which imported from Germany
Carbon content 250-500g/m2,get high efficiency and long life
Large air flow capacity,can be used under the conventional air flow
Flexibility to choose medium according to different pollutant
The best initial efficiency would be 99%
| Thickness Vs Efficiency vs pressure drop | ||||||
| Thickness | Initial efficiency | Pressure drop(pa)@2.5m/s | Pressure drop(pa)@3.5m/s | |||
| Inches | (mm) | Type V | Type A | Type B | ||
| 12 | 292 | 99% | 95% | 96% | 80 | 115 |
| Dimensions vs Air flow | |||
| Dimensions(W*H) | Air flow(m3/h) | ||
| Inches | (mm) | @2.5m/s | @3.5m/s |
| 24*12 | 610*305 | 1700 | 2350 |
| 24*24 | 610*610 | 3400 | 4700 |
Engaged in creating a clean and fresh environment for people, Sffiltech is specialized in superhelen molecular filter. As one of the best manufacturers and suppliers, we can assure you the best quality and stable performance of our custom products. Please rest assured to buy.
