Best 5 Micron Water Filter Bag Factory for Filtration

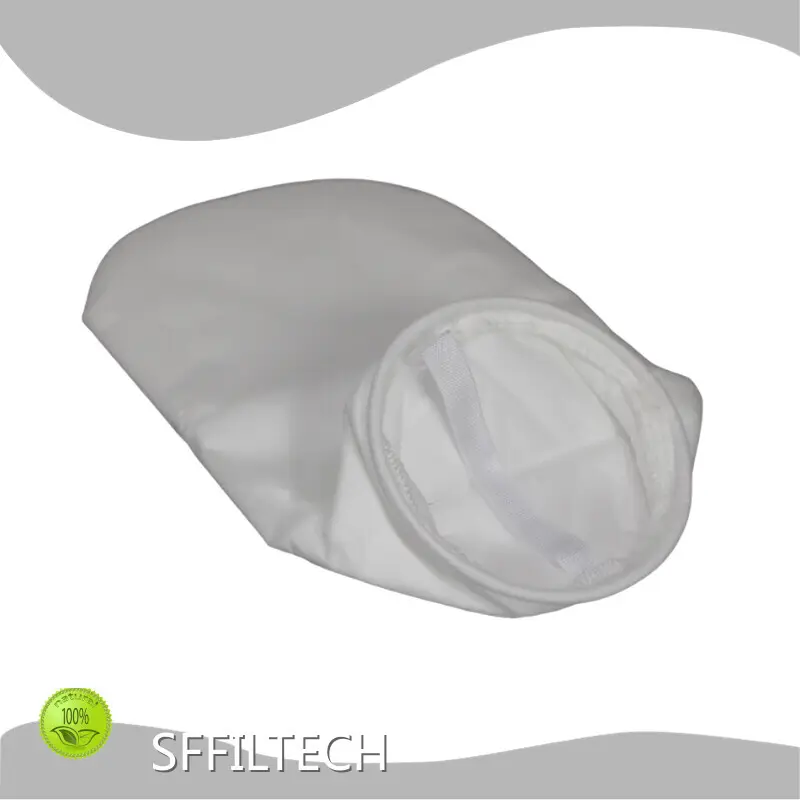

Product details of the 5 micron water filter bag
Product Information
Each 5 micron water filter bag is built to customers' exact specifications with the finest materials. Products have passed the international quality certification, to ensure high quality products. SHANGHAI SFFILTECH CO., LTD has now come into the competitive phase of integrated strength after long time of rapid development in 5 micron water filter bag field.
Product Introduction
Melt blown polypropylene oil absorbent cotton has excellent hydrophobicity and lipophilicity, fast oil absorption speed and large oil absorption (15-20 times of self-weight and less than 0.1 times of water absorption). Acid and alkali resistance, organic solvent resistance, good bending and tensile strength. Remove trace non emulsified hydrocarbons from the liquid. This filter bag can not only remove oil, but also remove particles of different grades as required.
Oil absorbing AGF filter bag
|
Product Item |
Three Layers Melt-blown Nonwoven PP Oil absorbing AGF filter bag/Degreasing filter sock |
|
Filter Media |
Polypropylene oil absorbent cotton + polyester, nylon (MO) / polyester (PE), nylon (MO) / polypropylene (PO) |
|
Maximum Operating Temperature |
Polyester: 275-325° F (135-162° C) |
|
Relative filtration accuracy |
0.5, 1, 3, 5, 10, 25, 50, 75, 100, 125, 150, 200, 250, 300 |
|
Filter Bag Area(m²) /Filter Bag Volume (Liter) |
1#: 0.19 m² / 7.9 Liter2#: 0.41 m² / 17.3 Liter3#: 0.05 m² / 1.4 Liter4#: 0.09 m² / 2.5 Liter5#: 0.22 m² / 8.1 Liter |
|
Collar Ring |
Polypropylene ringPolyester ringStainless steel ring |
|
Shape |
Round, V type, sector, square |
Oil absorbing AGF filter bag
|
Size |
Maxflow |
Filter Area |
Volume |
Diameter |
Length |
|
(m³/h) |
(㎡) |
(L) |
(Inch) |
(Inch) |
|
|
#01 |
20 |
0.25 |
8.00 |
7 |
17 |
|
#02 |
40 |
0.50 |
17.00 |
7 |
32 |
|
#03 |
6 |
0.09 |
1.30 |
4 |
9 |
|
#04 |
12 |
0.16 |
2.50 |
4 |
15 |
|
#05 |
18 |
0.20 |
3.80 |
6 |
22 |
|
Customized size, shape and structure |
|||||
Application
● Filter bag for some strict, filtration efficiency more than 99% of the application● Is the ideal choice for food and beverage industry, also can be in other requirements on strict industry into full play● Beer, wine, spirits and beverage filtration● Fine particle removal in parts cleaning● Final filtration of lacquers● Final filtration of vinegar● Activated carbon removal in process systems● Hydraulic oils and lubricants● Electric paint coating line● Wastewater discharge pretreatment● Circulating water for circuit board production● Automobile production coating line● Metal casting● Protective filtration before ultrafiltration● Filtration of spray water (oil removal and filtration)
Company Feature
• SFFILTECH's core management personnel have decades of industry experience and rich theoretical and practical experience, which provides favorable conditions for the development.
• Our company has good natural conditions and a developed transportation network, laying a good foundation for the development.
• SFFILTECH inherits the concept of advancing with the times, and constantly takes improvement and innovation in service. This promotes us to provide comfortable services for customers.
• SHANGHAI SFFILTECH CO., LTD was built in We have an increasingly large business scale and improved management system after accumulating for years.
• In recent years, SFFILTECH has continuously optimized the export environment and has striven to expanded export channels. Besides, we have actively opened up the foreign market to change the simplex situation of the sales market. All these contribute to the increment of market share in the international market.
Welcome everyone to come for consultation.
