SFFILTECH 1 Micron Water Filter Bag Suppliers
Product details of the 1 micron water filter bag
Product Information
Designing 1 micron water filter bag is a great way for SFFILTECH to gain more customers. The quality inspection highly meets the international standards. SHANGHAI SFFILTECH CO., LTD will make full use of such good business models as 1 micron water filter bag supermarkets and overseas warehouses, consolidate the basis of its overseas markets.
Product Introduction

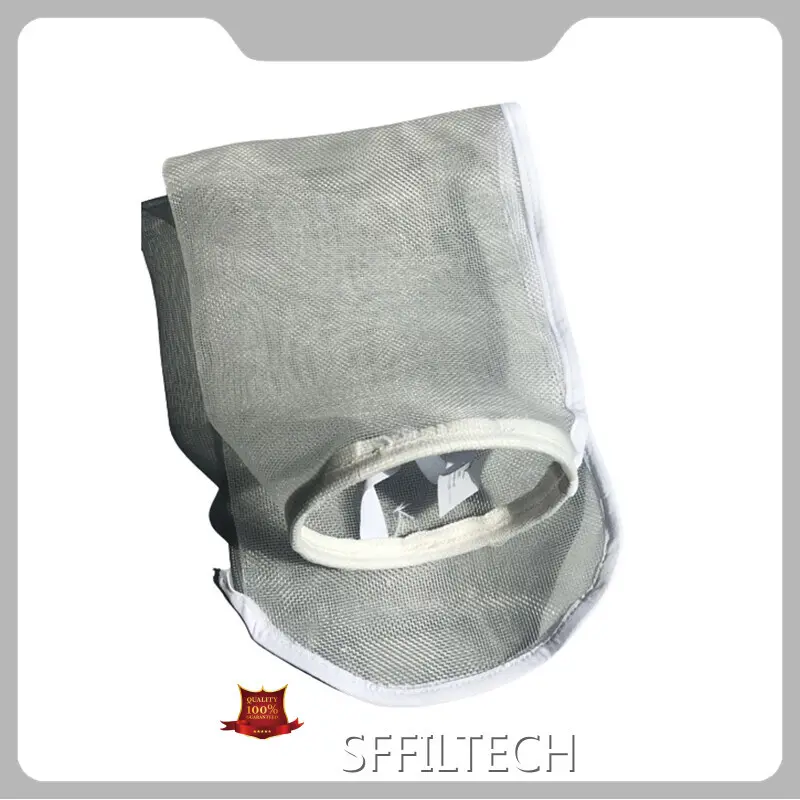

The nylon filter bag is made of high-strength nylon woven mesh stitched, and adopts unique edge wrapping technology to prevent needle hole leakage to the greatest extent, and directly intercept impurities larger than its own mesh in the filtration on the material surface; Particles with a diameter smaller than the mesh will pass through the mesh and enter the downstream, so the nylon monofilament filter bag realizes surface filtration, and the smooth surface is easy to clean and can be reused.
Multifilament NMO nylon filter bag/filter sock size
|
Size |
Maxflow |
Filter Area |
Volume |
Diameter |
Length |
|
(m³/h) |
(㎡) |
(L) |
(Inch) |
(Inch) |
|
|
#01 |
20 |
0.25 |
8.00 |
7 |
17 |
|
#02 |
40 |
0.50 |
17.00 |
7 |
32 |
|
#03 |
6 |
0.09 |
1.30 |
4 |
9 |
|
#04 |
12 |
0.16 |
2.50 |
4 |
15 |
|
#05 |
18 |
0.20 |
3.80 |
6 |
22 |
|
Customized size, shape and structure |
|||||
Multifilament NMO nylon filter bag/filter sock structure
|
Product Item |
FDA food grade Monofilament NMO nylonfilter bag/filter sock for food pre-filtering |
|
Filter Media |
Monofilament NMO nylon |
|
Maximum Operating Temperature |
Nylon: 350° F (177° C) |
|
Relative filtration accuracy |
1, 5, 10, 15, 25, 35, 40, 45, 50, 55, 75, 100,125, 150, 200, 250, 300, 400, 600, 800, 1000 |
|
Filter Bag Area(m²) /Filter Bag Volume (Liter) |
1#: 0.19 m² / 7.9 Liter2#: 0.41 m² / 17.3 Liter3#: 0.05 m² / 1.4 Liter4#: 0.09 m² / 2.5 Liter5#: 0.22 m² / 8.1 Liter |
|
Collar Ring |
Polypropylene ringPolyester ringStainless steel ring |
|
Shape |
Round, V type, sector, square |
Application
● Petrochemical industry● Light industry food● Metallurgy● Electronics● Pharmaceutical● In the automobile industry, pretreatment, pre cleaning● Electrophoretic paint● Spray flushing water● The circulating water is filtered,● Solvent purification in the paint industry● Resin treatment and wastewater treatment.
Company Advantage
• With high-quality products and rich management experience, our company has established a sales network of products throughout the Americas, Australia and Asia.
• So far, SFFILTECH has developed the business for years. During the years, we have gained frustrations as well as achievements. Moreover, we have chased and achieved our dreams.
• SFFILTECH is located in a beautiful environment with pleasant climate and traffic convenience. It makes a great natural advantage in the production, export, and sales of products.
Consulting and order from friends of all walks of life are welcomed!
