Wholesalemesh Liquid Filter Bag for Filtration
Product details of the mesh liquid filter bag
Product Overview
SFFILTECH mesh liquid filter bag strictly adopts superior raw material for better performance. The product has been tested by many quality norms and has been approved to be qualified in all respects, such as performance, service life, and so on. The mesh liquid filter bag managed by SFFILTECH is widely used in industry. This product is the fastest growing product in the market and is believed to gain a larger market share in the future.
Product Description
SFFILTECH's mesh liquid filter bag is processed based on advanced technology. It has excellent performances in the following details.

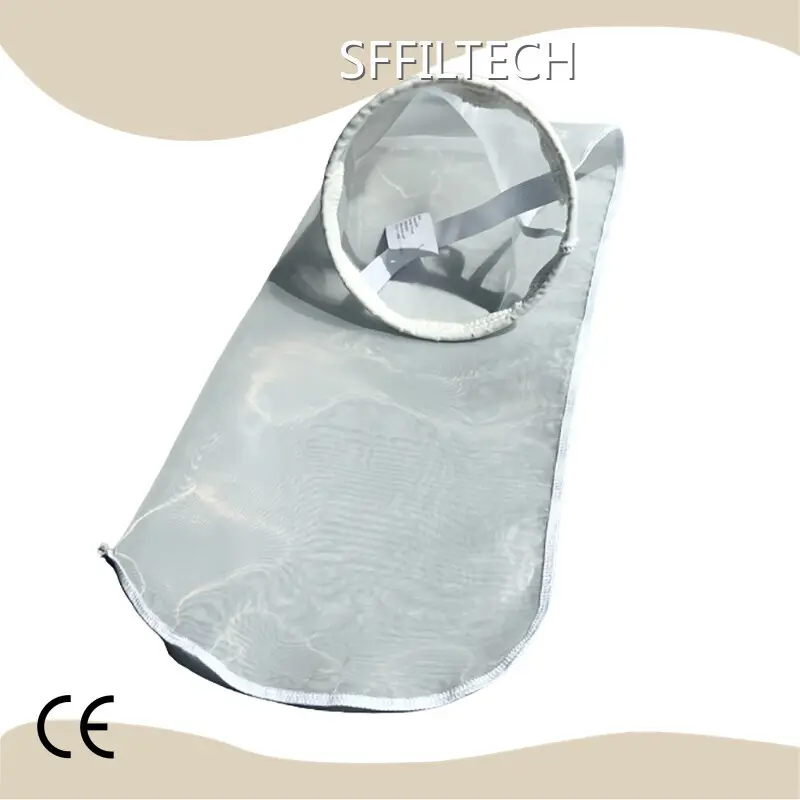

Multifilament NMO Nylon Filter Bag
The nylon filter bag is made of high-strength nylon woven mesh stitched and is adopted by unique edge wrapping technology to prevent needle hole leakage to the greatest extent . It directly intercepts impurities larger than its own mesh in the filtration system on its material surface.Particles with a diameter smaller than the mesh will pass through and enter the downstream. So the nylon mono-filament filter bag only performs surface filtration.The smooth surface of nylon mono-filament is easy to clean and can be reused.
Multifilament NMO nylon filter bag/filter sock size
|
Size |
Maxflow |
Filter Area |
Volume |
Diameter |
Length |
|
(m³/h) |
(㎡) |
(L) |
(Inch) |
(Inch) |
|
|
#01 |
20 |
0.25 |
8.00 |
7 |
17 |
|
#02 |
40 |
0.50 |
17.00 |
7 |
32 |
|
#03 |
6 |
0.09 |
1.30 |
4 |
9 |
|
#04 |
12 |
0.16 |
2.50 |
4 |
15 |
|
#05 |
18 |
0.20 |
3.80 |
6 |
22 |
|
Customized size, shape and structure |
|||||
Multifilament NMO nylon filter bag/filter sock structure
|
Product Item |
FDA food grade Monofilament NMO nylonfilter bag/filter sock for food pre-filtering |
|
Filter Media |
Monofilament NMO nylon |
|
Maximum Operating Temperature |
Nylon: 350° F (177° C) |
|
Relative filtration accuracy |
1, 5, 10, 15, 25, 35, 40, 45, 50, 55, 75, 100,125, 150, 200, 250, 300, 400, 600, 800, 1000 |
|
Filter Bag Area(m²) /Filter Bag Volume (Liter) |
1#: 0.19 m² / 7.9 Liter2#: 0.41 m² / 17.3 Liter3#: 0.05 m² / 1.4 Liter4#: 0.09 m² / 2.5 Liter5#: 0.22 m² / 8.1 Liter |
|
Collar Ring |
Polypropylene ringPolyester ringStainless steel ring |
|
Shape |
Round, V type, sector, square |
Application
It is widely used in the following industries;● Electroplating● D paint● Ink● Paint● Food● Chemical industry● Grain and oil and other chemical solutions;● Acid and alkali resistant fiber has high mechanical strength and can be used repeatedly.
Company Advantages
SHANGHAI SFFILTECH CO., LTD (SFFILTECH), is a company located in shang hai. Our main business is the production and sales of Filter bag,filter housing,air filter. In the future, our company will always follow the business philosophy of 'character, quality, brand'. And we will manage our business based on the style of 'strict and serious, truth-seeking and pragmatic, developing and innovative'. We will continue to provide customers with more and better products and services and strive to be a domestic leading enterprise trusted and loved by the public. With a high-quality product research and development team, our company utilizes advanced development tools and conducts high-efficiency research and output. Therefore, the timely entry into the market of our products can be guaranteed. SFFILTECH is dedicated to providing professional, efficient and economical solutions for customers, so as to meet customers' needs to the greatest extent.
We are looking forward to developing a better future with you.
