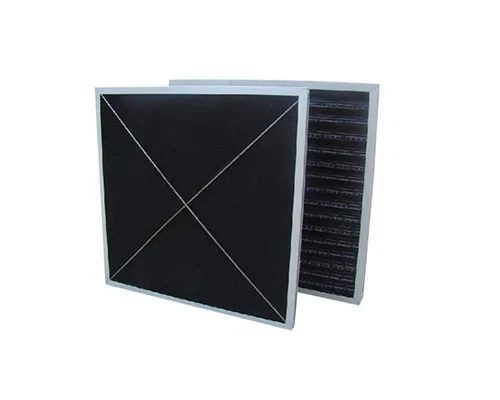

Activated Carbon Panel Filter
activated carbon panel filter----air filter, hepa filter, pre-filter, pleated filter,washable air filter, carbon filter
Air filter' panel filter Advantages:
1,Low initial pressure drop
2,Robust construction
3,Washable
4,High temperature resistance
5,Economical
Applications:coarse particle filtration
Type:flat mesh panel
Frame:galvanized steel, aluminum and stainless steel
Filter media:nylon mesh, aluminum mesh and stainless steel mesh
Grids: Aluminum mesh and stainless steel mesh
EN 779 Class:G2－G3
Average arrestance : 65%－80%（ASHRAE 52.1-1992）
MERV:MERV 2-4（ASHRAE 52.2-1999）
Final pressure drop:(recommender) 150Pa -（maximum）250Pa
Max. air flow rate:125% of nominal air flow rate
Max. operating temperature:250℃
Specification
| Type | Filter material | Arrestance | Length | Height | Thickness | Rated airflow(m3/h) | Initial pressure drop |
| Sff-70 | G2 | 65%-70% | 592 | 592 | 10-15 | 1800 | 35 |
| Sff-70 | G2 | 65%-70% | 592 | 592 | 20-25 | 1800 | 45 |
| Sff-70 | G2 | 65%-70% | 592 | 592 | 45-50 | 3000 | 25 |
| Sff-80 | G3 | 75%-80% | 592 | 592 | 10-15 | 1800 | 50 |
| Sff-80 | G3 | 75%-80% | 592 | 592 | 20-25 | 1800 | 60 |
| Sff-80 | G3 | 75%-80% | 592 | 592 | 45-50 | 3000 | 40 |
Panel filter is the pre filter of hepa filter and air filter.
MOQ: 1pc
Delivery time: 7 to 30 working days
Port: Shanghai
Payment terms: T/T, Paypal, Western Union, L/C, D/P,D/A
Samples: available.
factory tour: welcome
glass fiber, synthetic fiber and non woven fabric can be the material of air filter,hepa filter,pre filter, carbon filter,synthetic filter,pleated filter,activated carbon flat panel filter.
Engaged in creating a clean and fresh environment for people, Sffiltech is specialized in activated carbon panel filter. As one of the best manufacturers and suppliers, we can assure you the best quality and stable performance of our custom products. Please rest assured to buy.
