Material：
FMS filter cloth for dust-collection applications. Confirm the supplied fiber blend, scrim, finish and operating conditions before selection. This page contains legacy polyester reference data, which must not be treated as an approved FMS specification; request the current product data sheet before ordering.
Feature:
1.Operation temperature 150 Deg c,
2.the max surge is 150 deg c.
3. Review acid, alkali and hydrolysis exposure for the confirmed fiber blend and operating conditions.
4.Mean Air Permeability: 10-15 m3/m2/min@12.7mmH2O
5. Confirm the required finish, such as singeing, calendering, heat setting, membrane, water/oil-repellent or antistatic treatment, against the supplied product specification.
Advantage:
The legacy polyester reference mentions breaking elongation below 20% MD and 40% CMD and a 130°C condition. These values are not confirmed FMS specifications. Request a current data sheet and review dimensional stability for the application.
Techinical data
Shanghai Filterbag Factory Co., Ltd

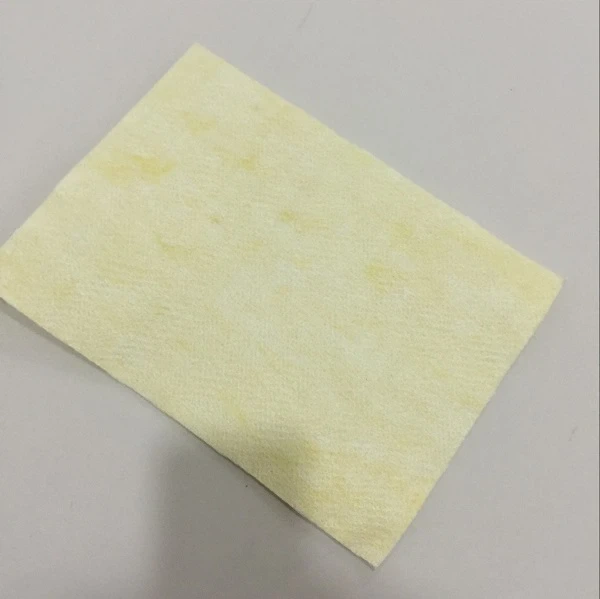

500gsm polyester needle punched felt+water&oil repellent
Construction | Needle felt |
Fibre Composition | Polyester |
Scrim Composition | Polyester |
Felt Area Weight | 500g/m2(±5%) |
Thickness | 1.8-1.9mm |
Mean Air Permeability | 10-15 m3/m2/min@12.7mmH2O |
Breaking Strength-MD（warp） | 900 N / 125px |
Breaking Strength-CMD（weft） | 1300 N / 125px |
Breaking Elongation( N/125px)-MD（warp） | 20% |
Breaking Elongation( N/125px)-CMD（weft） | 40% |
Dry Shrinkage MD（130℃warp） | ＜1.5 % |
Dry Shrinkage CMD（130℃weft） | ＜1.5 % |
Operating Temperatures | <130 deg C |
Recommended Maximum Continuous | 130 deg C |
Recommended Maximum Surge | 150 deg C |
Finish | Heat set, singed, calendared W/O Repellent |
Application:
Review the dust composition, gas chemistry, temperature and cleaning method before selecting FMS filter cloth for an industrial process. Food or pharmaceutical use requires application-specific documentation and review.
Contact SFFILTECH with the required fiber blend, dimensions, finish and operating conditions for specification review and quotation.
