Material:

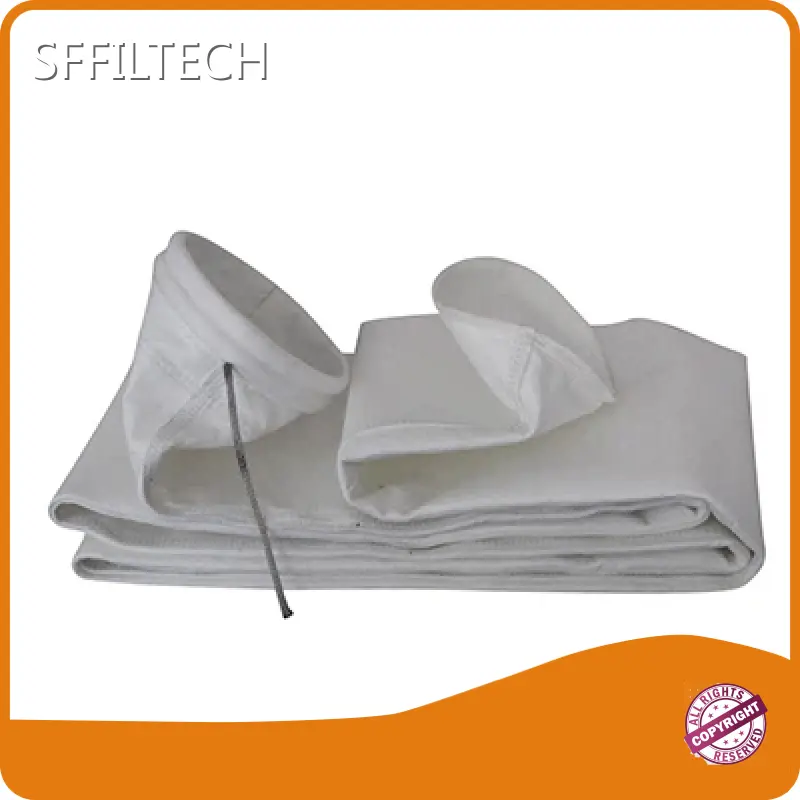

polyester filter bag are made of 100% filament polyester fiber,after needle punched, singed heat set calender for the raw polyester filter felt material, then polyester filter felt can be sewn into polyester filter bags.
Feature:
1.Operation temperature 150 Deg c,
2.the max surge is 150 deg c.
3.good anti-acid, good anti-alkali ,good hydrolysis stability
4.Mean Air Permeability: 10-15 m3/m2/min@12.7mmH2O
5.It is the cheapest filter media in the bag filter filtration field. Polyester bag filter is the most popular items in the bag house system.
Available Finish: singed,calendar,heat set PTFE membrane,W/O,anti-static treatment.
Advantage:
Polyester bag filters Breaking Elongation is less than 20% for MD and 40% for CMD,low dry shrinkage, can work well in the 130 deg C. the material is cheaper than other material, so widely used in a lot of bag house system.
Techinical data
Shanghai Filterbag Factory Co., Ltd
www.sffiltech.com
Construction | Needle felt |
Fibre Composition | Polyester |
Scrim Composition | Polyester |
Felt Area Weight | 500g/m2(±5%) |
Thickness | 1.8-1.9mm |
Mean Air Permeability | 10-15 m3/m2/min@12.7mmH2O |
Breaking Strength-MD(warp) | 900 N / 125px |
Breaking Strength-CMD(weft) | 1300 N / 125px |
Breaking Elongation( N/125px)-MD(warp) | 20% |
Breaking Elongation( N/125px)-CMD(weft) | 40% |
Dry Shrinkage MD(130℃warp) | <1.5 % |
Dry Shrinkage CMD(130℃weft) | <1.5 % |
Operating Temperatures | <130 deg C |
Recommended Maximum Continuous | 130 deg C |
Recommended Maximum Surge | 150 deg C |
Finish | Heat set, singed, calendared W/O Repellent |
Application:
Polyester filter bag widely used in mine, limestone, cement, iron and steel industries,alumina delivery, electrolytic aluminum, non-ferrous metal production, wood processing, food processing and pharmacy industry.
Engaged in creating a clean and fresh environment for people, Sffiltech is specialized in polyester filter bag. As one of the best manufacturers and suppliers, we can assure you the best quality and stable performance of our custom products. Please rest assured to buy.
Company Advantages
· The design of SFFILTECH dust collector filter cloth caters to the foreign markets.
· The product passes the verification of international quality inspection standards.
· By improving the customer service, our dust collector filter cloth has been more and more popular.
Company Features
· SHANGHAI SFFILTECH CO., LTD is a manufacturer which specializing in providing dust collector filter cloth for overseas markets.
· SFFILTECH has been focusing on the technical innovation.
· With sticking to the idea of striving for perfection, SFFILTECH will continually create more values for our customers. Please contact us!
Application of the Product
Our dust collector filter cloth meets the needs of multiple industries and fields.
SFFILTECH has an excellent team consisting of R&D, production, operation and management. According to actual needs of different customers, we could provide customers with practical solutions.
