Product Introduction
In some filtering situations, customers need to ensure the time requirements for a batch production. Sffiltech's ultra long life liquid filter bag can well meet the requirements of ultra-long life filtration. The filtration performance of the ultra-long life liquid filter bag is also reflected in that more long fibers are embedded in the material, which has a good ability to capture impurities in soft rubber particles.
Ultra-long life liquid filter bag/filter sock size
Size |
Maxflow |
Filter Area |
Volume |
Diameter |
Length |
(m³/h) |
(㎡) |
(L) |
(Inch) |
(Inch) |
|
#01 |
20 |
0.25 |
8.00 |
7 |
17 |
#02 |
40 |
0.50 |
17.00 |
7 |
32 |
#03 |
6 |
0.09 |
1.30 |
4 |
9 |
#04 |
12 |
0.16 |
2.50 |
4 |
15 |
#05 |
18 |
0.20 |
3.80 |
6 |
22 |
Customized size, shape and structure |

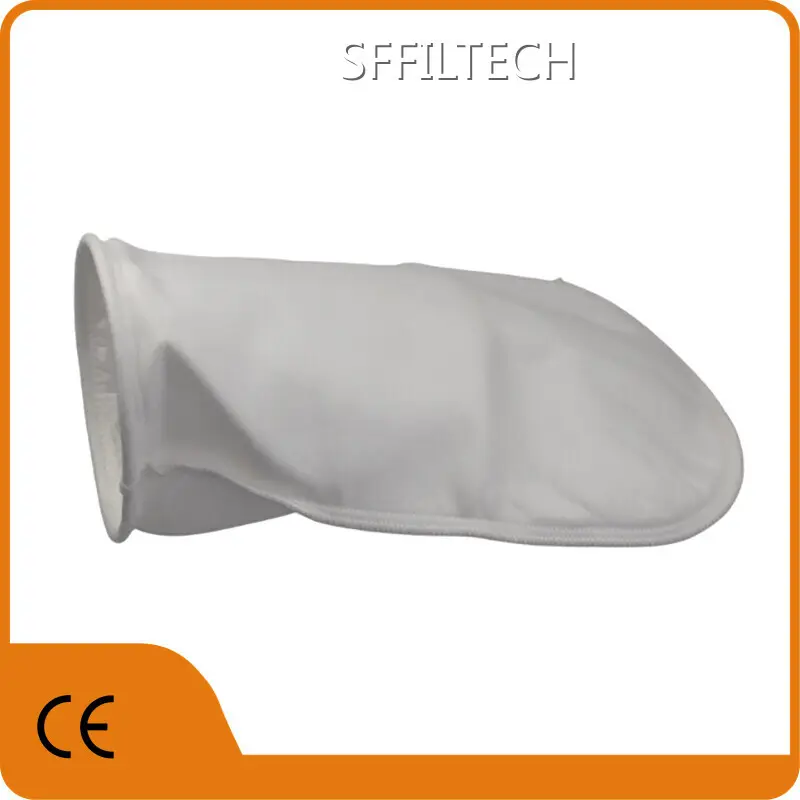

Ultra-long life liquid filter bag
Product Item |
FDA food grade ultra-long life liquid filter bag/filter sock for soft rubber particles |
Filter Media |
PP/PE |
Maximum Operating Temperature |
Polyester: 275-325° F (135-162° C)Polypropylene: 200-220° F (93-104° C) |
Relative filtration accuracy |
1, 5, 10, 15, 25, 35, 40, 45, 50, 55, 75, 100 |
Filter Bag Area(m²) /Filter Bag Volume (Liter) |
1#: 0.19 m² / 7.9 Liter2#: 0.41 m² / 17.3 Liter3#: 0.05 m² / 1.4 Liter4#: 0.09 m² / 2.5 Liter5#: 0.22 m² / 8.1 Liter |
Collar Ring |
Polypropylene ringPolyester ringStainless steel ring |
Shape |
Round |
Application
● Chemical industry● Automobile● Water treatment● Lubricating oil● Filtration of high-purity fluids with low particulate concentration
Company Advantages
· Our liquid filter bag is more in line with the modern green concept.
· Whether incoming detection, production process supervision or finished product inspection, the production is done with the most serious and responsible attitude.
· SHANGHAI SFFILTECH CO., LTD fully understand the customer's sensitive points and pain points.
Company Features
· SFFILTECH is a remarkable enterprise in the liquid filter bag industry.
· We have invested heavily in new technology and our facilities. All our in-house machines are equipped with ground-breaking technology to maximize productivity and reduce waste.
· We strive for a sustainable future. Our packaging has a lower impact on the environment, being biodegradable and even compostable.
Application of the Product
The liquid filter bag produced by SFFILTECH is of high quality. And it is one of the products widely used in the industry.
With rich manufacturing experience and strong production capability, SFFILTECH is able to provide professional solutions according to customers' actual needs.
