What is filter housing？

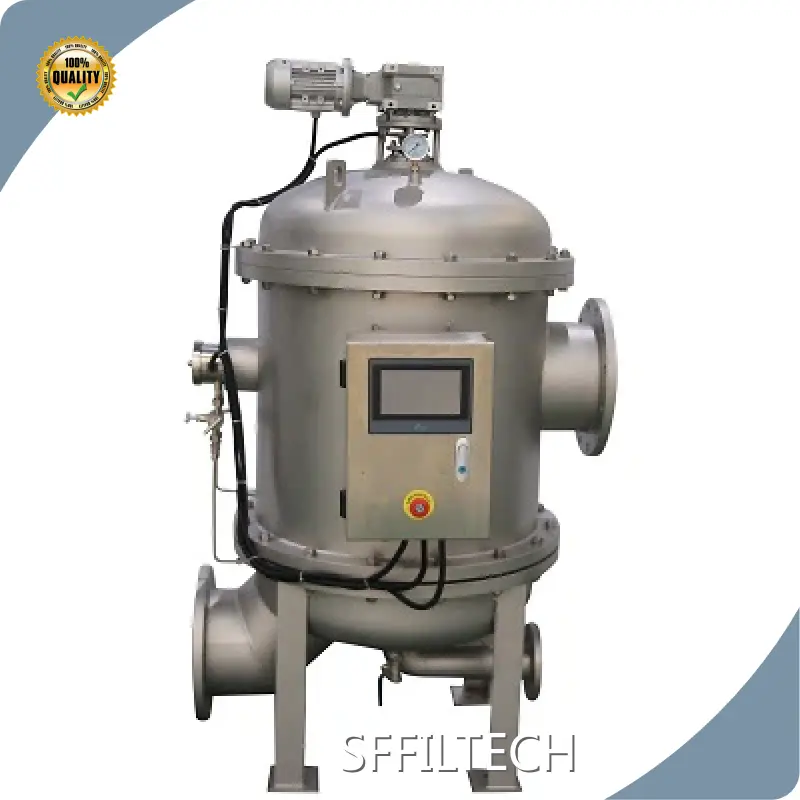

Full automatic self cleaning filter housing system

Full automatic back washing filter housing BCM series

BCM full automatic back washing filter housing is suitable for filtering high flow, high speed, low viscosity fluid particle impurity.

BCM full automatic back washing filter housing is a mechanical and electrical products, with advantages of reasonable design, high filtration efficiency, low operating costs, continuous filtration in back washing process, etc., which is widely used in metallurgy, chemical, electric power, oilfield injection water, ballast water, environment-friendly water treatment, etc..

Working principle of BCM full automatic back washing filter housing:

The filtered liquid is flowing from the inlet to the filter housing, then going through the fixing plate into the filter housing, the liquid flows from the filter element inside to the outside, and then flows out from the filter vessel outlet; Impurities produced from back washing filter flows out from the sewage outfall.


Advantage

The internal mechanical structure of filtration equipment using patented technology, realizes the back washing function in true sense, which can completely remove the filter impurities, clean every corner without dead angle, flux without attenuation, and guarantee the filtration efficiency and long service life.

The filtering equipment is made of 304, 316L 2205, MONEL and other wedge-shaped filter screens. Which have high strength, high accuracy, corrosion resistance and the highest filtering accuracy of 25 microns.

N03

The filtering equipment can ensure automatic back washing through its own retrieval and response functions, and can cope with unstable water quality fluctuations without manual intervention.

N04

The control system of the filtering equipment is sensitive and operates accurately. The backwash differential pressure and time setting values can be flexibly adjusted according to different water sources and filtering accuracy.

N05

During back washing of filter equipment, each group of filter screens shall be back washed in turns. To ensure that the filter screen is cleaned safely and efficiently without affecting other filters and continue to filter.

N06

The filtering equipment adopts pneumatic blow down valve, so the back washing time is short. The back washing water consumption is little and the environment is economic.

N07

The filter equipment has compact and reasonable structure design, small floor area, flexible and convenient installation and movement.

N08

The filter equipment has few vulnerable parts .they are not consumables and have low operation and maintenance costs. They have simple operation and management.

N09

The working status of the filtering equipment is displayed by the touch screen or digital screen and the differential pressure and time settings are convenient and intuitive. .

Application

Sea water desalination, circulating cooling water and oilfield re-injection water, ballast water for ship, boiler reuse water, Ultra filtration ,back osmosis filtration, ion exchange pre-treatment, Paper nozzle filter.4.Filter equipment control system is sensitive, accurate operation, and can flexibly adjust the differential pressure and time setting value of back washing based on different water and filter accuracy.

Design Parameter Table
NAME: Full automatic back washing filter housing BCM series
MODEL: BCM300F100EDB
Design Data			Code&STD.	GB150.1~150.4-2011 Reference GB150.1~150.4-2011 《Pressure Vessels》
Design Press.	(Mpa.g)	1.0	Mat'of Man Parts		S30408(GB 24511-2009)
Design Temp.	(℃)	80	Corr.Allow.	(mm)	0
Hydro. Test Press.	(Mpa.g)	1.25	Filter Element Material		SS 304
Filte Area.	(㎡)	0.81	Gasket Material		NBR
No. Filter Element		7	Full Capacity	(m³)	0.06
Filter Element Size	(mm)	CartridgeΦ70*580	Empty Weight	(kg)	~120
Clean Pr.Drop	Mpa	0.01	Max.Allowed Pr.Drop	Mpa	0.1
Technical Data According to the user data tables or after consultation to fill in
Flow Rate.	(m³/h)	/	Fluid.		/
Working Temp. (in/out)	(℃)	/	Fluid Performance		/
Working Press.	(Mpa.g)	/	Fluid Density	(kg/m³)	/
Pore Size.	(μm)	/	Viscosity	(cp)	/
Solid Content.	(WT%)	/
NOZZLE LIST
Mark	Size	PN	Connections Standard	Flange Type	Face Type	Service	From q
N1	DN100	10	HG/T20592-2009	PL	RF	Inlet
N2	DN100	10	HG/T20592-2009	PL	RF	Outlet
N3	DN40	10	HG/T20592-2009	PL	RF	Drain
N4	1/2"	/	Rc1/2"(male)	/	/	Vent
N5	1/4"	/	Rc1/4"(female)	/	/	Pressure Guage
N6	1"	/	R1"(male)	/	/	Drain
P1、P2	1/4"	/	Rc1/4"(female)	/	/	Differential pressure
