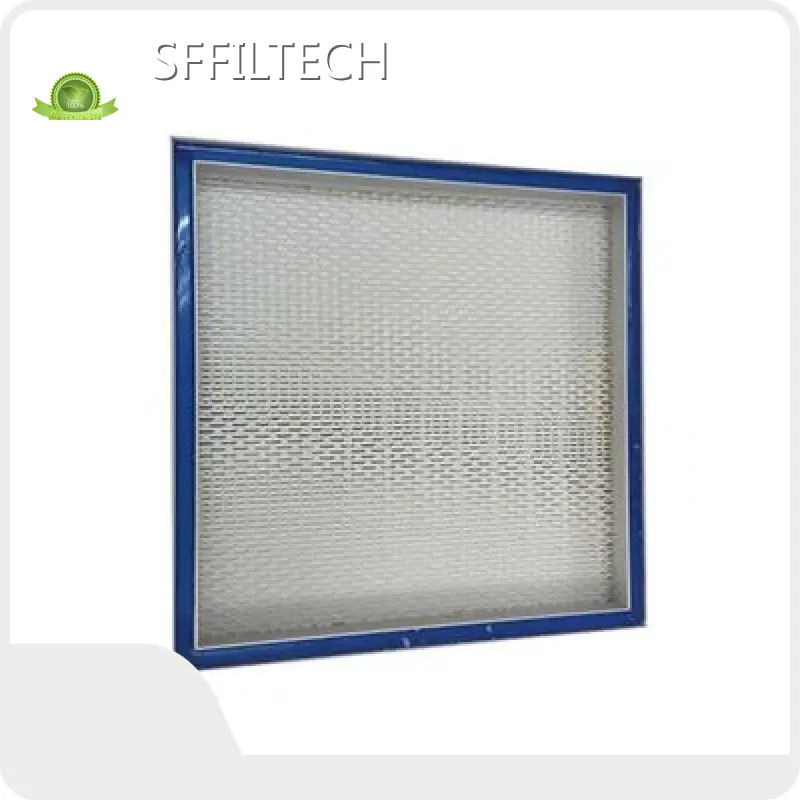

Hepa and Ulpa Filters by SFFILTECH
Product details of the hepa and ulpa filters
Product Introduction
The production of SFFILTECH hepa and ulpa filters is strictly controlled and inspected before going into the next stage. Having passed the quality assurance, the product is of high reliability. SHANGHAI SFFILTECH CO., LTD has prepared people working the front lines to deal with customer service issues.
Application:
As final filter for industrial clean room,such as HEPA filter housing,FFU,laminar flow workbench,air cleaning equipment, etc
Advantages
Ultra-fine glass fibre paper,good stability of filtration efficiency
Perfect structure of "V" shape,effectively reduce the system resistance
Light, compact structure Double side retainers High quality blue urethane gel which made in USA
Individually tested according to EN 1822
Specification
Type: High efficiency panel filter(Gel Sealant)
Media: Glass fibre paper
Frame: Extruded and anodized aluminium
Separator: Hot-melt glue
Sealant: Polyurethane
Recommended final pressure drop: 300Pa
Temperature: 90ºC maximum in continuous service
Thickness vs Efficiency vs Pressrue drop
Thickness | Pressure drop （Pa）@0.45m/s | ||||
(Inches) | (mm) | H13 | H14 | U15 | U16 |
22/3 | 69 | 105 | 110 | 120 | 140 |
31/2 | 90 | 75 | 80 | 90 | 110 |
41/3 | 110 | 60 | 65 | 70 | 85 |
Dimensions vs Air flow
Dimensions (WxH) | Air Flow（3/h） | |
(Inches) | (mm) | @0.45m/s |
20×20 | 484×484 | 380 |
24×12 | 610×305 | 300 |
24×24 | 610×610 | 600 |
25×25 | 630×630 | 643 |
30×24 | 762×610 | 750 |
30×30 | 762×762 | 940 |
36×24 | 915×610 | 900 |
36×30 | 915×762 | 1130 |
36×36 | 915×915 | 1350 |
48×24 | 1210×610 | 1200 |
48×30 | 1210×762 | 1500 |
48×36 | 1210×915 | 1800 |
48×48 | 1210×1210 | 2400 |
Note：Pressure drop +/-15% Odd sizes available
Model named rule
Engaged in creating a clean and fresh environment for people, Sffiltech is specialized in gel sealant mini-pleated heap and ulpa filter. As one of the best manufacturers and suppliers, we can assure you the best quality and stable performance of our custom products. Please rest assured to buy.
