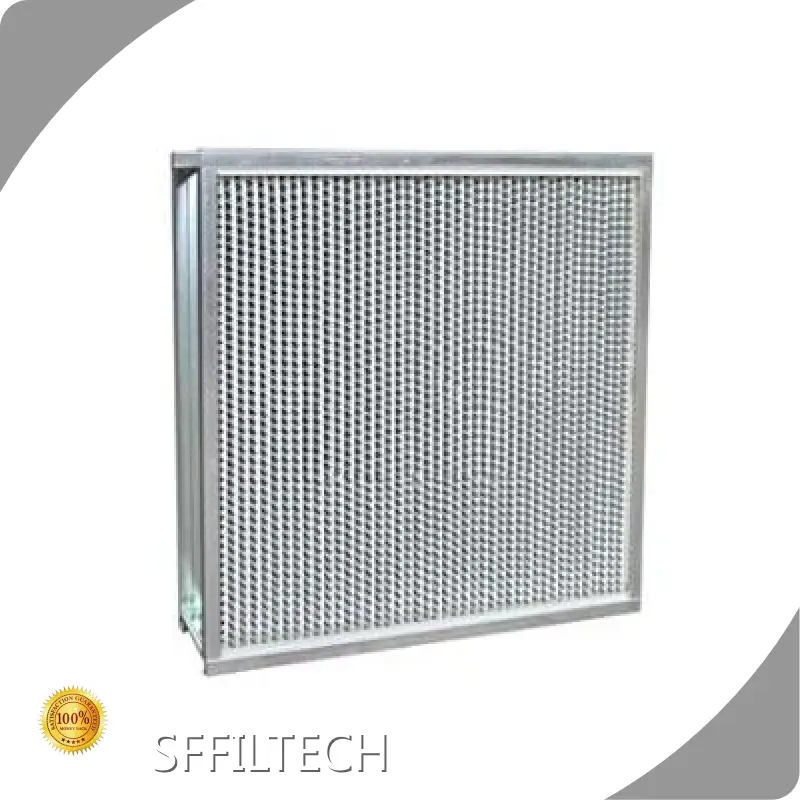

High Efficiency Air Filter by SFFILTECH
Application:
As final filter for industrial clean room,
the part where higher wind speed is needed
Advantages
Ultra-fine glass fiber paper，ensures that filter keep its good efficiency throughout operation life
Pleat distance can be to 3 mm (or 5 mm, 7 mm), achieve lower resistance, longer life
Double side retainers,provide adequate protection for filter
Mutual embedded housing ensures high strength structure
Non flange, single flange or double flange boxes are available for frame
Individually tested according to EN 1822
Specification
Type: TRigid pleated box filter
Media: Glass fiber paper
Frame: Galvanized steel/Stainless steel
Separator: Aluminum foil/Paper foil
Recommended final pressure drop: 500Pa ：500Pa
Temperature: 90ºC maximum in continuous service
| Model | Dimensions | Media Area (m2) | Rated Air Flow (m3/h) | Initial Pressure Drop (Pa) | ||
| W×H×D (mm) | Standard | High Capacity | Standard | High Capacity | F8 | H10 |
| SF230 | 230×230×110 | 0.8 | 1.4 | 110 | 180 | ≤85 |
| SF320 | 320×320×220 | 4.1 | 6.1 | 350 | 525 | |
| SF484/10 | 484×484×220 | 9.6 | 14.4 | 1000 | 1500 | |
| SF484/15 | 726×484×220 | 14.6 | 21.9 | 1500 | 2250 | |
| SF484/20 | 968×484×220 | 19.5 | 29.2 | 2000 | 3000 | |
| SF630/05 | 315×630×220 | 8.1 | 12.1 | 750 | 1200 | |
| SF630/10 | 630×630×220 | 16.5 | 24.7 | 1500 | 2250 | |
| SF630/15 | 945×630×220 | 24.9 | 37.3 | 2200 | 3300 | |
| SF630/20 | 1260×630×220 | 33.4 | 50.1 | 3000 | 4500 | |
| SF610/03 | 305×305×150 | 2.4 | 3.6 | 250 | 375 | |
| SF610/05 | 305×610×150 | 5 | 7.5 | 500 | 750 | |
| SF610/10 | 610×610×150 | 10.2 | 15.3 | 1000 | 1500 | |
| SF610/15 | 915×610×150 | 15.4 | 23.1 | 1500 | 2250 | |
| SF610/20 | 1220×610×150 | 20.6 | 30.9 | 2000 | 3000 | |
| SF610/05X | 305×610×292 | 10.1 | 15.1 | 1000 | 1500 | |
| SF610/10X | 610×610×292 | 20.9 | 31.3 | 2000 | 3000 |
Thickness vs Efficiency vs Pressure drop
Thickness | Plait | Pressure drop （Pa）@0.8m/s | ||||
(Inches) | (mm) | (mm) | E11 | E12 | H13 | H14 |
6 | 150 | 3 | 165 | 185 | 200 | 215 |
5 | 180 | 205 | 220 | 235 | ||
7 | 200 | 225 | 250 | 260 | ||
3 | 150 | 165 | 180 | 195 | ||
9 | 220 | 5 | 160 | 185 | 200 | 210 |
7 | 180 | 200 | 225 | 235 | ||
3 | 130 | 150 | 165 | 180 | ||
12 | 292 | 5 | 140 | 160 | 175 | 190 |
7 | 160 | 180 | 195 | 210 | ||
Dimensions vs Air flow
Dimensions (H x W) | Air Flow （m3/h） | |||
(Inches) | (mm) | 1.5m/s | 2m/s | 2.5m/s |
24×12 | 610×305 | 1000 | 1340 | 1675 |
24×24 | 610×610 | 2000 | 2680 | 3350 |
24×12 | 595×287 | 920 | 1230 | 1540 |
24×24 | 595×595 | 1900 | 2535 | 3170 |
Note：Pressure drop +/-15% Odd sizes available
Engaged in creating a clean and fresh environment for people, Sffiltech is specialized in classic fashion pleated hepa box filter. As one of the best manufacturers and suppliers, we can assure you the best quality and stable performance of our custom products. Please rest assured to buy.
Company Advantages
· The offered SFFILTECH
· With a relatively long service life, the product brings more economic benefits to customers.
· SHANGHAI SFFILTECH CO., LTD will provide delivery and shipping rate to assist customers to make purchase plan.
Company Features
· SHANGHAI SFFILTECH CO., LTD is a leading supplier of high efficiency air filter which always provides fashionable and excellent products.
· The stable development of SHANGHAI SFFILTECH CO., LTD means great input in quality and technology.
· SHANGHAI SFFILTECH CO., LTD focuses on brands, standards, service, and performance. Please contact us!
Application of the Product
The high efficiency air filter produced by SFFILTECH has a wide range of applications.
SFFILTECH insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.
