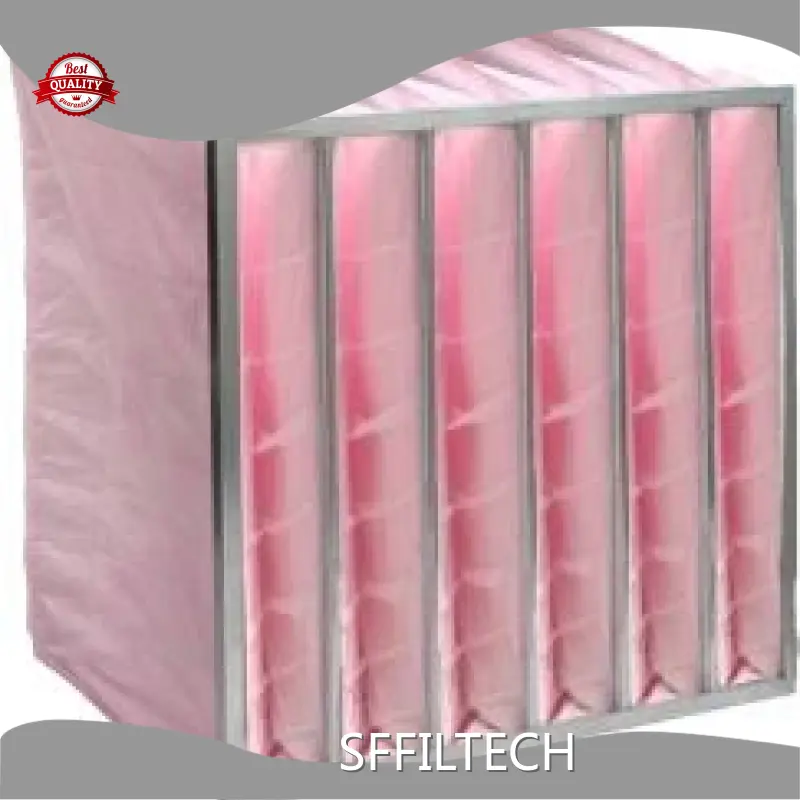

Product details of the medium efficiency air filter
Quick Overview
SFFILTECH medium efficiency air filter is made of the finest materials that have passed our strict materials selection system. Our quality inspectors make sure that the product is in accordance with international quality standards. The good characteristics make the product highly marketable in the global market.
Product Introduction
SFFILTECH's medium efficiency air filter has been greatly improved in the following details.
Media: polyester fibers
Frame: galvanized plate, aluminum, stainless steel plate or plastic
Filter efficiency: G3-M6
Each filter tested according to EN779: 2012
Synthetic Fiber Pockets Filter,Class M5 to F9
Application: The main filter of ventilation system
Specification
Type: Multi pockets filter
Media: Synthetic fiber
Frame: Galvanized steel/Aluminum/ABS
Recommended final pressure drop: 450Pa
Temperature: 90ºC maximum in continuous service
Advantages
Multi-layer composite melt-blown materials
Material is 40% deeper than normal product
"V" shaped filter bag,filter material is utilized 100% totally
All edges have seal processed
The integration design of the inside frame increase the overall structural strength and minimize the pressure drop
The metal edge of the inside frame rolled to be smoothly shape, make the maintenance operation more safely
Model | Dimensions | No. of Pockets | Media Area (m2) | Initial Pressure Drop (Pa) @ Air Flow (m3/h) | ||
W×H×D (mm) | G3 | G4 | F6 | |||
SF-24×24×14-6P | 592×592×381 | 6 | 3.3 | 25@2500 40@3600 | 35@2500 60@3600 | 80@2500 |
SF -20×24×14-5P | 490×592×381 | 5 | 2.7 | 25@2100 40@3000 | 35@2100 60@3000 | 80@2000 |
SF -12×24×14-3P | 287×592×381 | 3 | 1.6 | 25@1250 40@1800 | 35@1250 60@1800 | 80@1250 |
SF -24×24×22-6P | 592×592×558 | 6 | 4.6 | 25@3800 40@5400 | 35@3800 60@5400 | 55@2500 85@3600 |
SF -20×24×22-5P | 490×592×558 | 5 | 4.1 | 25@3200 40@4500 | 35@3200 60@4500 | 55@2000 85@3000 |
SF -12×24×22-3P | 287×592×558 | 3 | 2.3 | 25@1900 40@2700 | 35@1900 60@2700 | 55@1250 85@1800 |
Engaged in creating a clean and fresh environment for people, Sffiltech is specialized in synthethic media pocket filters. As one of the best manufacturers and suppliers, we can assure you the best quality and stable performance of our custom products. Please rest assured to buy.
Company Advantages
Located in shang hai, SHANGHAI SFFILTECH CO., LTD is a company that runs the main business of Filter bag,filter housing,air filter. In the future, our company will take quality as our soul, customer as the center and technology as our guarantee. We implement scientific management and provide users with quality products and services wholeheartedly. Our company thinks highly of talents construction. At present, we have a group of employees with high quality. Their strict working style and dedication are the effective guarantee for the long-term development. SFFILTECH provides comprehensive and reasonable solutions based on customer's specific situations and needs.
Our products are of excellent quality and favorable price, winning a wide recognition. If you want to know more about the products, please contact us!
