Product details of the polypropylene depth filter
Product Description
The technology adopted in SFFILTECH polypropylene depth filter production is industry-leading. The product has passed the strict quality inspection of the authoritative third parties. The product has distinct competitive advantages and can create huge economic benefits for customers.
| Design Parameter Table | |||||||
| Name: DScartridge filter housing | |||||||
| Material：S30408,S31608 | |||||||
| Model: DSCE0520610050-DB | |||||||
| Design Data | Code&STD. | GB150.1~150.4-2011 Reference GB150.1~150.4-2011《Pressure Vessels》 | |||||
| Design Press. | (Mpa.g) | 1.0 | Mat'of Man Parts | S30408(GB 24511-2009) | |||
| Design Temp. | (℃) | 80 | Corr.Allow. | (mm) | 0 | ||
Hydro. Test Press. | (Mpa.g) | 1.25 | Filter Element Material | SS 304 | |||
| Filte Area. | (㎡) | 4 | Gasket Material | NBR | |||
No. Filter Element | 5 | Full Capacity | (m³) | 0.025 | |||
| Filter Element Size | (mm) | 2.5"*20" | Empty Weight | (kg) | 28 | ||
| Clean Pr.Drop | Mpa | 0.01 | Max.Allowed Pr.Drop | Mpa | 0.1 | ||
| Technical DataAccording to the user data tables or after consultation to fill in | |||||||
| Flow Rate. | (m³/h) | / | Fluid. | / | |||
Working Temp. (in/out) | (℃) | / | Fluid Performance | / | |||
Working Press. | (Mpa.g) | / | Fluid Density | (kg/m³) | / | ||
| Pore Size. | (μm) | / | Viscosity | (cp) | / | ||
Solid Content. | (WT%) | / | |||||
| NOZZLE LIST | |||||||
| Mark | Size | PN | Connections Standard | Flange Type | Face Type | Service | From q |
| N1 | DN50 | 16 | HG/T20592-2009 | PL | RF | Inlet | |
| N2 | DN50 | 16 | HG/T20592-2009 | PL | RF | Outlet | |
| N3 | 1/2" | / | Rc1/2"(female) | / | / | Vent | |
| N4 | 1/4" | / | Rc1/4"(female) | / | / | Pressure Guage | |
| N5 | 1/2" | / | Rc1/2"(female) | / | / | Drain | |

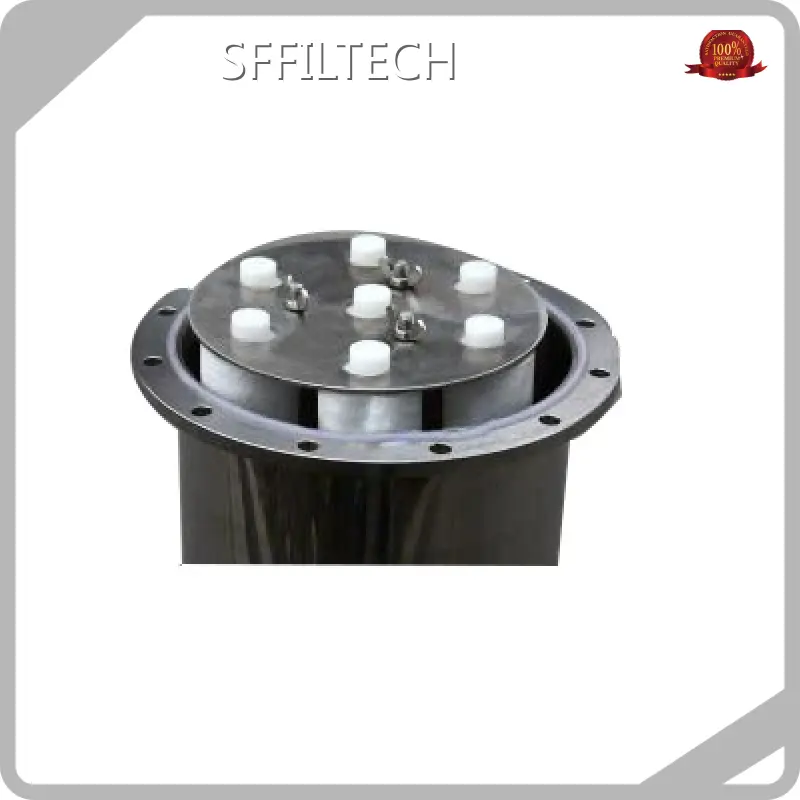

Light Cartridge Filter housing / multi-core high flow filter housing
Feature:
Light Cartridge Filter, the specifications:3 core, 5 core, 7core cartridge length 20inch. Cartridge filter housing is suitable to install with both double open ends cartridge and single open end 222 cartridge. Unique Hooping & quick opening design. It’s easy to open, close, manipulate and maintain ,
Inlet/outler: 2 "NPT cable , ANSI, JIS, DIN flanges .
O-ring material: rubber, EPDM, Viton, PTFE, etc.
Surface finishment: grit blast, mechanical polishing, electrolytic polishing.
Doctopfilter multi-cartridge high flow filter housing range from 9 cartridges to 100 cartridges, and the length of cartridge is 20”，30” ，40” ，50”. A variety of cartridge filter housing is available, adopting unique swing bolt with spring lid assistant.
Cartridge filter housing is suitable to install with both double open ends cartridge and single open end 222 cartridge. Unique Hooping & quick opening design. It’s easy to open, close, manipulate and maintain ,
Inlet/outler: 2 "NPT cable , ANSI, JIS, DIN flanges .
O-ring material: rubber, EPDM, Viton, PTFE, etc.
Surface finishment: grit blast, mechanical polishing, electrolytic polishing.
Engaged in creating a clean and fresh environment for people, Sffiltech is specialized in cartridge housing filtration. As one of the best manufacturers and suppliers, we can assure you the best quality and stable performance of our custom products. Please rest assured to buy.
Company Advantage
• SFFILTECH's products sell well at home and abroad.
• SFFILTECH, founded in has been engaged in the production and processing of Filter bag,filter housing,air filter for years.
• SFFILTECH's location enjoys advantageous geographic condition with open and unimpeded traffic access. This creates convenience for us to deliver various Filter bag,filter housing,air filter in time.
We provide you with high-quality products and look forward to your inquiry.
