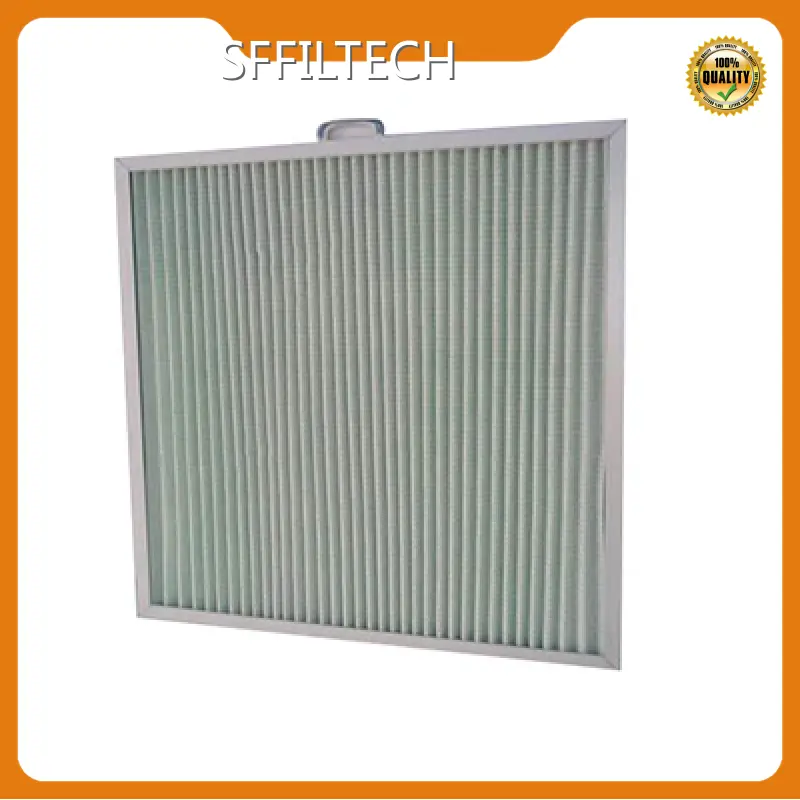

Pre Air Filter by SFFILTECH
Product details of the pre air filter
Product Information
SFFILTECH pre air filter follows advanced techniques to eliminate waste. Systematic quality control: it is the key control factors in the whole production process. From development to the shipment, the quality of this product is under the whole control of the quality team. The popularity of pre air filter also can contribute to its strict quality assurance.

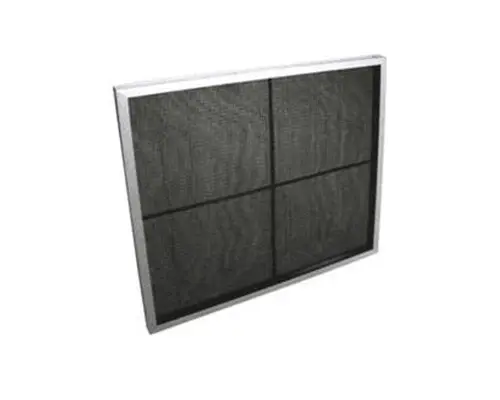

Metal/Nylon Mesh Filter，Class G2
Application:
Metal filter for grease or oil mist separation. Pre filter for thick particles.
Type: G2 Metal filter and high oil separation efficiency.
Frame: Aluminum EN-AW-6060, ALMG3, stainless steel AISI 304L, acid stainless steel AISI316L, galvanized.
Media: Woven metal wire mesh. Can be made in aluminum, galvanized, stainless steel or acid stainless steel material.
Grating: Aluminum, Hot-dip galvanized expanded metal net or stainless steel grid.
Advantages
Good performance at catching big size particles Very strong structure and durable frame
Can be cleaned by water and compressed air , reuse, long service life
Galvanized or stainless steel wire woven into a special pattern
G2 class cleanable dust, sand,flour, paint etc pre filter grease and oil filter with very high separation efficiency
Can be made in all customized sizes
Can be cleaned in dishwasher or pressure washer
Very large cooling surface without excessive air resistance
Specification
Low pressure drop
Type: Pre filter for big size particle
Media: Metal（Aluminum）/Nylon mesh/Stainless steel mesh
Frame: Galvanized steel/Aluminum/Stainless steel
Recommended final pressure drop: 180Pa
Temperature: Normal temperature
Thickness vs Efficiency vs Pressure drop
| Thickness | Pressure drop(pa)@2.5m/s | |
| Inches | (mm) | G2 |
| 1 | 25 | 20 |
| 2 | 46 | 40 |
Dimensions vs Air flow
| Dimensions(W*H) | Air flow(m3/h) | |
| Inches | (mm) | @2.5m/s |
| 24*24 | 592*592 | 3400 |
| 24*12 | 592*287 | 1700 |
| 24*20 | 592*490 | 2800 |
| 20*20 | 490*490 | 2300 |
how to choose the heap filter?
1.Odd sizes available
2.Pressure drop
3.Frame: GZ galvanized steel,aluminum abs plastic
4.Filter efficiency:
5.Width
6.Height
7.Frame thickness
8.Up side: gasket or not?
9.Sealing ring or not?
Engaged in creating a clean and fresh environment for people, Sffiltech is specialized in metal filter nylon mesh filter. As one of the best manufacturers and suppliers, we can assure you the best quality and stable performance of our custom products. Please rest assured to buy.
