Pre Filter by SFFILTECH

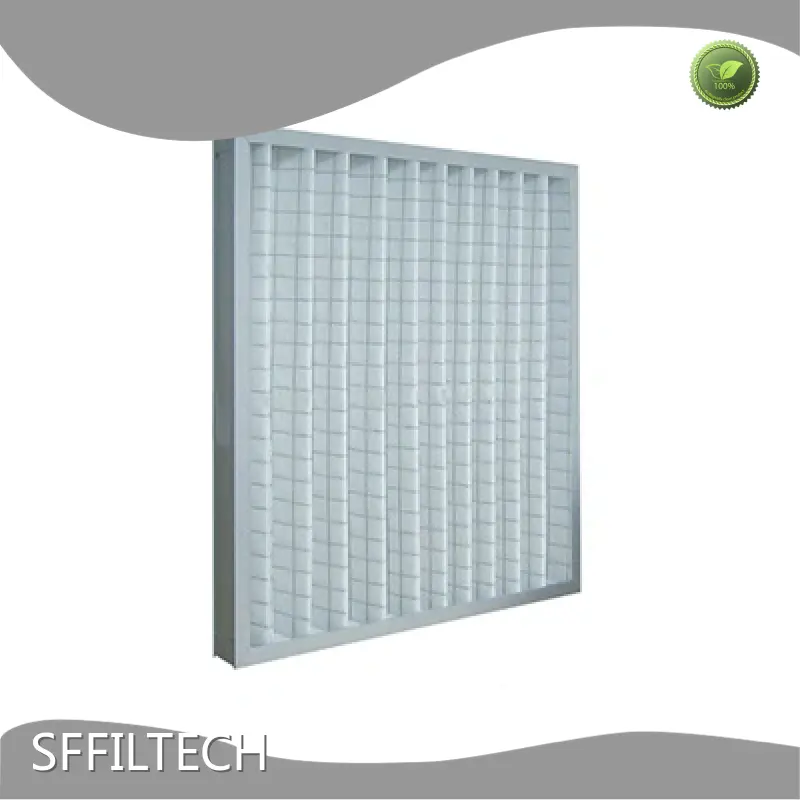

Pleated Pre-Filter with Metal Mesh and Metal Frame ，Class G3 to M6
Application: As a pre filter in air-condition system
Specification:
Type: Pre-filter
Media: Polyester fiber
Frame: Galvanized steel/Aluminum/ABS
Recommended final pressure drop: 250Pa
Temperature: 100ºC maximum in continuous service
Advantages
10 pleats/feet,25% higher than normal product
Filter media and frame using adhesive bonding, strong structure
Filter media can be replaced,frame can be recycled
Filter media and metal mesh tight adhesion, enhance the strength of the filter material,effective weakened the shaking of it, reduce the secondary pollution
| Thickness Vs Efficiency vs pressure drop | |||||
| Thickness | Pressure drop(pa)@2.5m/s | ||||
| Inches | (mm) | G3 | G4 | M5 | M6 |
| 2 | 46 | 65 | 75 | 120 | 140 |
| 4 | 96 | 60 | 70 | 100 | 120 |
| Dimensions vs Air flow | ||
| Dimensions(W*H) | Air flow(m3/h) | |
| Inches | (mm) | @2.5m/s |
| 24*24 | 592*592 | 3400 |
| 24*12 | 592*287 | 1700 |
| 24*20 | 592*490 | 2800 |
| 20*20 | 490*490 | 2300 |
how to choose the heap filter?
1.Odd sizes available
2.Pressure drop
3.Frame: GZ galvanized steel,aluminum abs plastic
4.Filter efficiency
5.Width
6.Height
7.Frame thickness
8.Up side: gasket or not?
9.Sealing ring or not?
10.Down side:gasket or not?
11.Sealing ring or not?
Engaged in creating a clean and fresh environment for people, Sffiltech is specialized in pleated pre-filter with metal mesh and metal frame. As one of the best manufacturers and suppliers, we can assure you the best quality and stable performance of our custom products. Please rest assured to buy.
Company Advantages
· SFFILTECH has been focusing on the design of pre filter to follow the trend in the market.
· The product is well received in the market for its high performance and reliable quality.
· Professional customer service has a positive influence on the development of SFFILTECH.
Company Features
· High-quality pre filter is one of the reason that makes SFFILTECH prosperous.
· SHANGHAI SFFILTECH CO., LTD has strong manufacturing capabilities and intelligent pre filter designers.
· SHANGHAI SFFILTECH CO., LTD has always adhered to the fine traditions of pre filter, and it has been strict throughout the whole process of business management. Get more info!
Application of the Product
Our pre filter can be used in a variety of industries to play a certain role.
SFFILTECH is committed to producing quality Filter bag,filter housing,air filter and providing comprehensive and reasonable solutions for customers.
