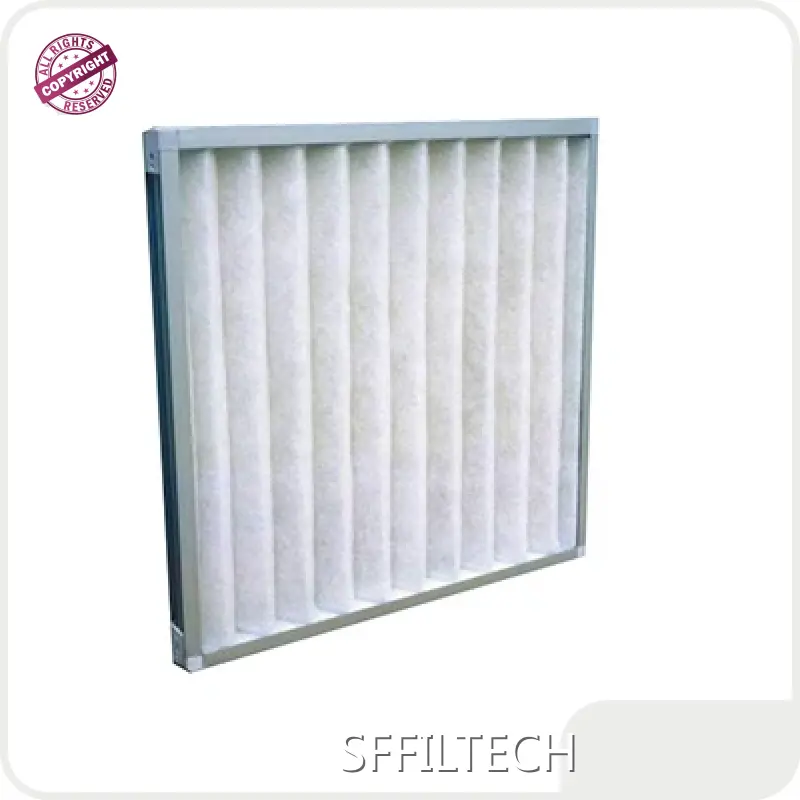

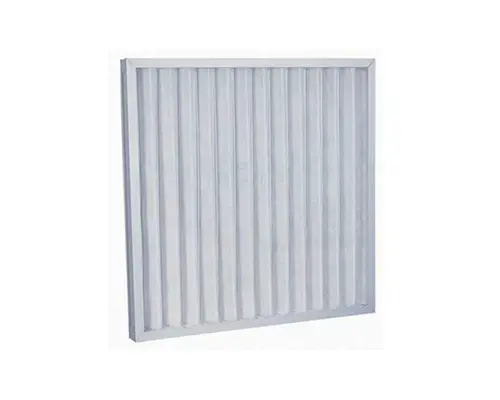

Pleated Pre-Filter with Media Holding Frames ,Class G3 to M6
Application: As a pre filter in air-condition system
Advantages
Specification:
Type: Pre-filter
Media: Polyester fiber
Frame: Galvanized steel/Aluminum/Stainless steel
Recommended final pressure drop: 250Pa
Temperature: 100ºC maximum in continuous service
Thickness Vs Efficiency vs pressure drop | |||||
Thickness | Pressure drop(pa)@2.5m/s | ||||
Inches | (mm) | G3 | G4 | M5 | M6 |
2 | 46 | 70 | 80 | 100 | 120 |
4 | 96 | 60 | 70 | 90 | 110 |
Dimensions vs Air flow | ||
Dimensions(W*H) | Air flow(m3/h) | |
Inches | (mm) | @2.5m/s |
24*24 | 592*592 | 3400 |
24*12 | 592*287 | 1700 |
24*20 | 592*490 | 2800 |
20*20 | 490*490 | 2300 |
Advantages:
7 pleats/feet,40% higher than normal product
With holding frame ,very strong structure
Customer can replace the material very easy by themselves, the holder and frame can be recycled
Washable,Can be reused when necessary
how to choose the heap filter?
1.Odd sizes available
2.Pressure drop
3.Frame: GZ galvanized steel,aluminum abs plastic
4.Filter efficiency:
5.Width
6/Height
7.Frame thickness
8.Up side: gasket or not?
9.Sealing ring or not?
10.Down side:gasket or not?
11.Sealing ring or not?
Engaged in creating a clean and fresh environment for people, Sffiltech is specialized in pleated pre-filter with media holding frames. As one of the best manufacturers and suppliers, we can assure you the best quality and stable performance of our custom products. Please rest assured to buy.
Company Advantages
· SFFILTECH pre filter for air purifier is offered with the help of talented team of craftsmen.
· With our performance objective, the performance of this product is ensured by a series of tests.
· That
Company Features
· SHANGHAI SFFILTECH CO., LTD is fully committed to the development and production of pre filter for air purifier.
· The factory has laid down a quality management system to help achieve smooth operation. This system has helped us spot and reject defective products and pinpointed production operations that need special attention, which eventually contributes to increased production efficiency.
· SHANGHAI SFFILTECH CO., LTD will further enhance its sense of social responsibility. Contact us!
Application of the Product
The pre filter for air purifier produced by our company is widely used in various industries and fields.
In addition to providing high-quality products, we also provide effective solutions based on the actual conditions and the needs of different customers.
