SFFILTECH is a brand supplier in dust collector bag house filtration, liquid bag filter filtration, and HVAC filtration systems.

SFFILTECH Bag Filter Housing for Sale Price List 1
SFFILTECH Bag Filter Housing for Sale Price List 2
SFFILTECH Bag Filter Housing for Sale Price List 3
SFFILTECH Bag Filter Housing for Sale Price List 4
SFFILTECH Bag Filter Housing for Sale Price List 5
SFFILTECH Bag Filter Housing for Sale Price List 6
SFFILTECH Bag Filter Housing for Sale Price List 1
SFFILTECH Bag Filter Housing for Sale Price List 2
SFFILTECH Bag Filter Housing for Sale Price List 3
SFFILTECH Bag Filter Housing for Sale Price List 4
SFFILTECH Bag Filter Housing for Sale Price List 5
SFFILTECH Bag Filter Housing for Sale Price List 6

SFFILTECH Bag Filter Housing for Sale Price List

Inquiry

Product details of the bag filter housing for sale


Product Introduction

bag filter housing for sale is one key factor that makes SFFILTECH warmly welcomed. Regular product quality audit is carried out to ensure reliable product quality. SFFILTECH aims at providing quality service to the public.

Design Data
Design Press.(Mpa.g)0.8Design Temp.(℃)150
Test Press.(Mpa)1.0Shell MaterialPP/PVDF
No. Filter Element1Gasket/MaterialBUNA
NOZZLE LIST
MarkSizeStandardServiceFacing
N1DN50HG/T20592-PN10     (ANSI B16.5 Class150)Inlet/
N2DN50HG/T20592-PN10     (ANSI B16.5 Class151)Outlet/
N31/2"Internal Thread G1/2"Vent
N41/2"Internal Thread G1/2"Drain

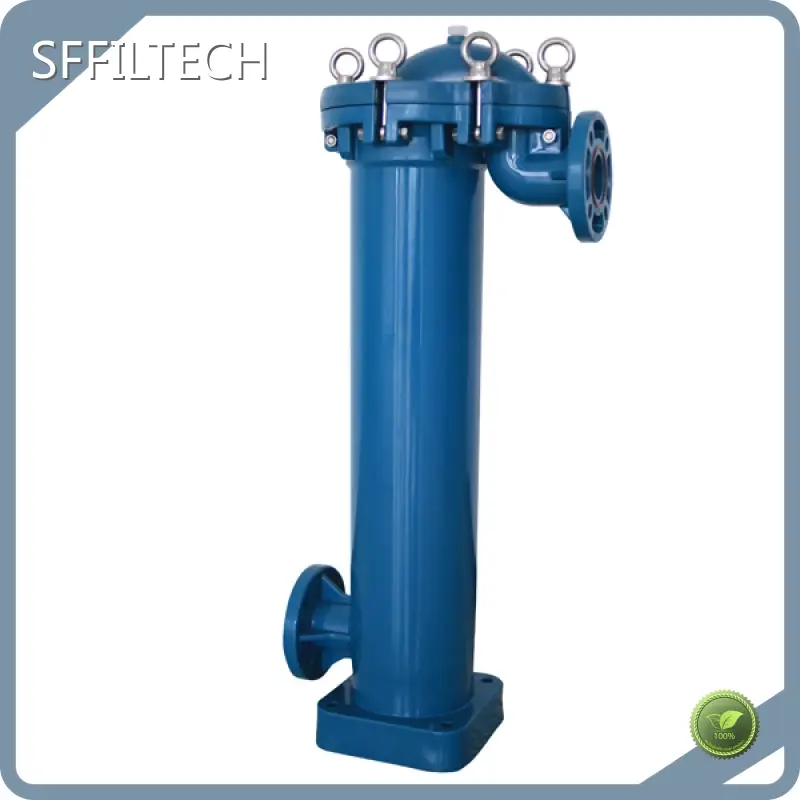

High quality liquid filters pvdf material plastic water bag housing

1.Brief description of pvdf material plastic water bag housing

pvdf material plastic water bag housing plastic pvdf for bag2#,1# ,5# easy for installation

This one is most advance one in the world, it can be used widely in the sea water treatment and also the long time use no leakage problem.

PVDF can against the temperature 150Deg. Its weight is around 26kg for one bag filter housing.

With high quality control, our pvdf bag filter housing is very popular in end user market.

2.Types of pvdf material plastic water bag housing:

2# pvdf material plastic water bag housing 5# pvdf material plastic water bag housing

3.Features of pvdf material plastic water bag housing

- simple and reasonable structure

- good sealing

- high water flow capacity

- easy operation

- positive sealing arrangement to avoid bypassing

- high filtering fineness

- easy replace

4.Apvdflications of pvdf material plastic water bag housing

pvdf material plastic water bag housing in Paint

Process water Filtration

Plating Solutions

Coatings

Lubricants

Solvents

Hydraulic Fluids

Ground Water Remediation

Industrial Waste Water Treatment

Packaging & Delivery

Packaging Details: HS code: 8421392200 for plastic bag filter housing

1.Plastic film inside and wooden box outside

2.mostly pallets

3.We make package as customer requirement

4.We are sure our package well protected the goods well.

5.usually our goods by sea, if small orders, we also can choose the airplane or Ali express or Fedex UPS DHL and so on

6.We can offer the OEM label in the woven bag if quantity is big

7.We have our own forwarder but if you have, we also can use your forwarder

Delivery Detail: Shipped in 7 days after payment

Company Detail

Main product: Dust filtration,liquid filter filtration and related machines

1.Micro filtration filter bag

Polyester micro filter bag, PE micro filter bag, Micro filter bag,5 micro filter bag,10 micro filter bags,PP micro filter bag,nylon micro filter bag,ptfe micro filter bag,stain steel micro filter bag and micro filter felt from 0.2 micro to 600micro and  so on.

Liquid filter bag housing

Liquid filtration and separation products

Bag filter system

Cartridge filter system

Pipe filters system

Self cleaning filters system

Auto back-flush self cleaning filter system

2.Dust filtration-----filter bag

Polyester filter bag,polyester anti-static filter bag,polyester filter bag blending,polyester filter bag with membrane,polyester filter bag water and oil repellent,polyester filter bag special type,pp filter bag,aramid filter bag pps filter bag acrylic filter bag, p84 filter bag, ptfe filter bag,ptfe mix p84filter bag,HST filter bag,fiberglass filter bag,PTFE mix pps filter bag,Basalt filter bag and polyester  filter cloth acrylic filter cloth. P84 filter cloth,pps filter cloth and fiberglass filter farbic and so on.

3.Machines for making dust filter bags

Automatic filter bag tube line,Semi-Automatic filter bag tube line,Tripe-needle filter bag sewing machine,double need sewing machine, long arm sewing machine,over lock sewing machine,slitting machine,filter bag bottom punching machine,package machines,needle punch line and so on.

Usage/Occasion

Filter bag can be used for industrial filtration,product filtration,solid/liquid separation,like:

- Asphalt mixing plants

- Biomass power stations

- Chemical and pharmaceutical industry

- High temperature deducting

- Coal-fired power stations

- Food industry

- Non-ferrous metal and steel production

- Cement, gypsum and lime industry

- Thermal waste treatment

Company Introduction

SFFILTECH Bag Filter Housing for Sale Price List 7

SFFILTECH Bag Filter Housing for Sale Price List 8SFFILTECH Bag Filter Housing for Sale Price List 9

SFFILTECH Bag Filter Housing for Sale Price List 10

We control every step for the filter bag housing detail with more than 10 years' experience

We care every detail of the plastic bag filter housing, even one small part we wish best quality control You can see the picture detail to see our quality control.

Bag filter housing

We have a lot of plastic bag filter housing each one we focus on small detail to improve the quality control.

Application:

plastic bag filter housing can be used in the Paint, beer, vegetable oil, medicine, cosmetics, chemicals, petroleum products, textile chemicals, photographic chemicals, electroplating solution, milk, mineral water, hot solvent, latex, industrial water, syrup, resin, printing ink, industrial waste water, juice, edible oil, waxes.

Working principle

Sffiltech series stainless steel bag filter housing is a kind of novel structure, small volume, simple and flexible operation, energy saving, high efficiency, enclosed operation and strong adaptability multipurpose filtration equipment.

Sffiltech series stainless steel bag filter housing: filter cylinder simplified, the filter head and quick opening structure, stainless steel filter bag reinforce net main components.

The filter is a pressure type filtering device, the liquid from the filter shell beside the entrance into the pipe bag and device in strengthening network, liquid infiltration had need of degree of fineness of the bag that can be qualified filtrate bag itself is a, impurity particles is capture filter bag. The replacement of the filter bag is very convenient, without the basic filter material consumption.

Bag filter housing

SFFILTECH Bag Filter Housing for Sale Price List 11

plastic bag filter housing

You can see the every detail with high quality control

SFFILTECH Bag Filter Housing for Sale Price List 12

SFFILTECH Bag Filter Housing for Sale Price List 13

SFFILTECH Bag Filter Housing for Sale Price List 14

SFFILTECH Bag Filter Housing for Sale Price List 15

From parts to our finished products, we tried every possible to control the quality, I like you to be our plant to visit us for plastic bag filter housing

Why Choose Us

SFFILTECH Bag Filter Housing for Sale Price List 16SFFILTECH Bag Filter Housing for Sale Price List 17

About us

1.Biggest and oldest filter bag housing supplier in china

2.Almost every parts made by our self

3.From 1996 factory and export from 2006

4.We are not only the supplier but one information center for all the filtration industry

Equipment & technology

2.Our every parts are well tested and control

We wish your coming to be here to check

Service

3.More than 10 experiences for export

We have many agents in the world.

1.We exported from 2006, more than 10 experiences for export market, so we know well of the abroad working condition

2.We are factory:

1.1 Our factory started from 1996, the first numbers person in the filtration business, so our technician person more than 14 experiences, we know the bag house working condition very well and can offer you our honest suggestion.

1.2 Our bag filter housing 304/316 liquid technician have more than 15 years experience.

1.3 Our bag filter housing 304/316 liquid making technician have more than 16 years experience.

1.4 We know the china filtration market well also, our goods are around anywhere in china bag house,so we can offer you our best filter bag solution, which can make you save me and get better filtration function.

1.5 We focus on high quality filter bag housing.with all necessary machines in one factory.

1.6 We test every parts one by one before shipment with high-tech equipment

1.7 We have strong after-sales service, service team best service for you.

1.8 We accept any quantity orders for better service our customers.

1.9 Our factory person is local person, so our goods is stable

2.0 We have sample stock for next order, so you can get your data at any time when you come to us for next order.

3.Low MOQ: our factory have many stock filter bag housing, so we can make any quantity

order for you.

4.Low price: We try our best to make sure our price are the lowest anywhere,factory lowest price for you a better

deal almost every time. We are proud to help you save money on the products you want.

5.Good quality and Certification we passed FDA,MSDS, ISO9001 and other test.

Engaged in creating a clean and fresh environment for people, Sffiltech is specialized in pvdf bag filter housing. As one of the best manufacturers and suppliers, we can assure you the best quality and stable performance of our custom products. Please rest assured to buy.

Doctop filter Factory Show:


Company Advantage

• Our products have been sold to the domestic market for a long time and to overseas markets such as The sales scale and quantity rank top in the domestic industry.
• We strictly comply with the standard of fast, accurate and great service, and are committed to providing quality services for consumers.
• SFFILTECH attaches great importance to talent cultivation. Currently, we have an excellent and efficient staff team who effectively guarantees sustainable development.
• Founded in our company has been continuously developed in the years. With strong management, technology and service strength, we have successfully entered the leading position in the industry.
All customers are sincerely welcomed to contact us for consultation!

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
