SFFILTECH Liquid Bag Filter Liquid Bag Filterfactory
Product details of the liquid bag filter
Product Description
The raw material used in SFFILTECH liquid bag filter is procured from some of the reliable vendors. The product performance meets the most demanding requirements. The market prospect of the product is positive with increasing demand in the global base.
Product Introduction

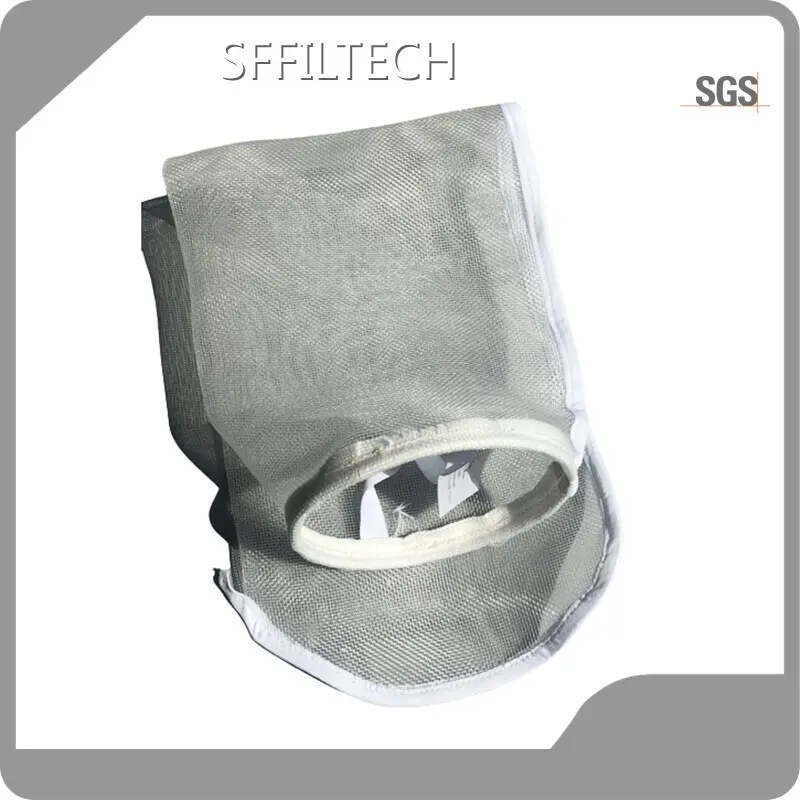

The nylon filter bag is made of high-strength nylon woven mesh stitched, and adopts unique edge wrapping technology to prevent needle hole leakage to the greatest extent, and directly intercept impurities larger than its own mesh in the filtration on the material surface; Particles with a diameter smaller than the mesh will pass through the mesh and enter the downstream, so the nylon monofilament filter bag realizes surface filtration, and the smooth surface is easy to clean and can be reused.
Multifilament NMO nylon filter bag/filter sock size
|
Size |
Maxflow |
Filter Area |
Volume |
Diameter |
Length |
|
(m³/h) |
(㎡) |
(L) |
(Inch) |
(Inch) |
|
|
#01 |
20 |
0.25 |
8.00 |
7 |
17 |
|
#02 |
40 |
0.50 |
17.00 |
7 |
32 |
|
#03 |
6 |
0.09 |
1.30 |
4 |
9 |
|
#04 |
12 |
0.16 |
2.50 |
4 |
15 |
|
#05 |
18 |
0.20 |
3.80 |
6 |
22 |
|
Customized size, shape and structure |
|||||
Multifilament NMO nylon filter bag/filter sock structure
|
Product Item |
FDA food grade Monofilament NMO nylonfilter bag/filter sock for food pre-filtering |
|
Filter Media |
Monofilament NMO nylon |
|
Maximum Operating Temperature |
Nylon: 350° F (177° C) |
|
Relative filtration accuracy |
1, 5, 10, 15, 25, 35, 40, 45, 50, 55, 75, 100,125, 150, 200, 250, 300, 400, 600, 800, 1000 |
|
Filter Bag Area(m²) /Filter Bag Volume (Liter) |
1#: 0.19 m² / 7.9 Liter2#: 0.41 m² / 17.3 Liter3#: 0.05 m² / 1.4 Liter4#: 0.09 m² / 2.5 Liter5#: 0.22 m² / 8.1 Liter |
|
Collar Ring |
Polypropylene ringPolyester ringStainless steel ring |
|
Shape |
Round, V type, sector, square |
Application
● Petrochemical industry● Light industry food● Metallurgy● Electronics● Pharmaceutical● In the automobile industry, pretreatment, pre cleaning● Electrophoretic paint● Spray flushing water● The circulating water is filtered,● Solvent purification in the paint industry● Resin treatment and wastewater treatment.
Company Feature
• SFFILTECH's superior geographic location and traffic convenience make the transportation of Filter bag,filter housing,air filter really easy.
• SFFILTECH insists on the principle of 'integrity, professionalism, responsibility, gratitude' and strives to provide professional and quality services for customers.
• SFFILTECH, formally established in has changed the traditional marketing model into a new network marketing model after years of diligent research. We attract the attention of people from all walks of life, and receive support to successfully break the barriers between contemporary business and traditional business. Now, our company becomes an outstanding enterprise in the industry.
• Our company brings a group of technical backbones together, providing strong technical support for the production of quality products.
If you want to purchase our products in bulk, feel free to contact us.
