Top Liquid Bag Filter Company for Filtration

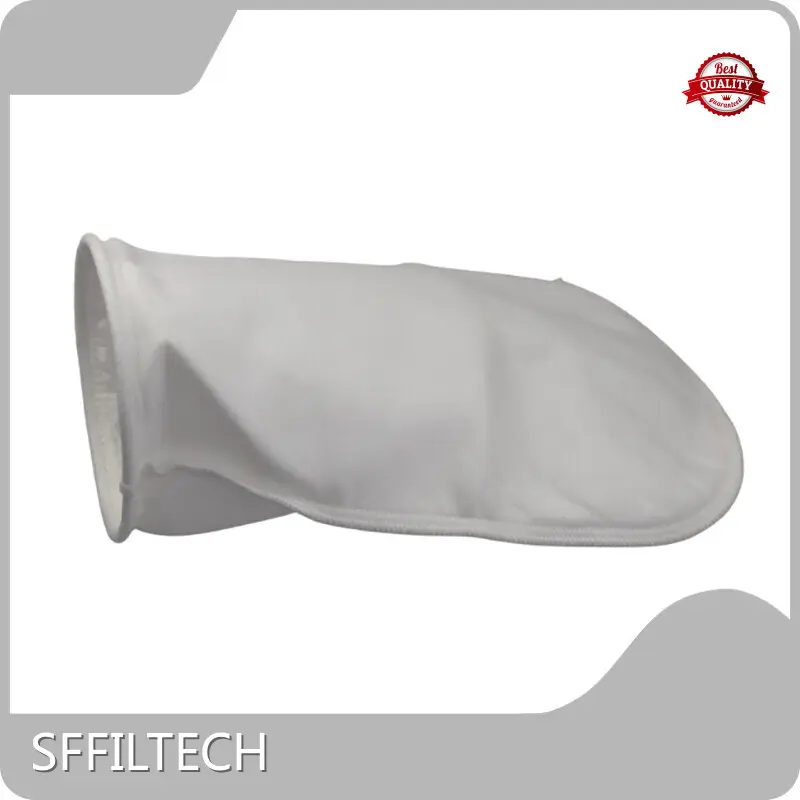

Product details of the liquid bag filter
Quick Overview
SFFILTECH liquid bag filter is provided with a desirable design and appealing appearance. The product excels in meeting and exceeding quality standards. SFFILTECH's liquid bag filter can be used in multiple industries. Comprehensive after-sales technical services enable SFFILTECH to gain a reputation in liquid bag filter industry.
Product Introduction
After being improved greatly, SFFILTECH's liquid bag filter is more advantageous in the following aspects.
Product Introduction
In some filtering situations, customers need to ensure the time requirements for a batch production. Sffiltech's ultra long life liquid filter bag can well meet the requirements of ultra-long life filtration. The filtration performance of the ultra-long life liquid filter bag is also reflected in that more long fibers are embedded in the material, which has a good ability to capture impurities in soft rubber particles.
Ultra-long life liquid filter bag/filter sock size
|
Size |
Maxflow |
Filter Area |
Volume |
Diameter |
Length |
|
(m³/h) |
(㎡) |
(L) |
(Inch) |
(Inch) |
|
|
#01 |
20 |
0.25 |
8.00 |
7 |
17 |
|
#02 |
40 |
0.50 |
17.00 |
7 |
32 |
|
#03 |
6 |
0.09 |
1.30 |
4 |
9 |
|
#04 |
12 |
0.16 |
2.50 |
4 |
15 |
|
#05 |
18 |
0.20 |
3.80 |
6 |
22 |
|
Customized size, shape and structure |
|||||
Ultra-long life liquid filter bag
|
Product Item |
FDA food grade ultra-long life liquid filter bag/filter sock for soft rubber particles |
|
Filter Media |
PP/PE |
|
Maximum Operating Temperature |
Polyester: 275-325° F (135-162° C)Polypropylene: 200-220° F (93-104° C) |
|
Relative filtration accuracy |
1, 5, 10, 15, 25, 35, 40, 45, 50, 55, 75, 100 |
|
Filter Bag Area(m²) /Filter Bag Volume (Liter) |
1#: 0.19 m² / 7.9 Liter2#: 0.41 m² / 17.3 Liter3#: 0.05 m² / 1.4 Liter4#: 0.09 m² / 2.5 Liter5#: 0.22 m² / 8.1 Liter |
|
Collar Ring |
Polypropylene ringPolyester ringStainless steel ring |
|
Shape |
Round |
Application
● Chemical industry● Automobile● Water treatment● Lubricating oil● Filtration of high-purity fluids with low particulate concentration
Company Advantages
As a modern company, SHANGHAI SFFILTECH CO., LTD is mainly engaged in the production and processing of Filter bag,filter housing,air filter. We are located in shang hai. Based on market demand, our company advocates that honest and trustworthy operation and cooperation would create mutual benefit. With the spirit of 'sincere, responsible, pragmatic, grateful', we take the initiative to assume social responsibility, and strive to shape an active and healthy corporate image. Our company has extensively taken excellent talents in, and we established a highly educated management team of high quality and efficiency. Based on the modern management concept, our management staff are committed to leading our company to develop faster and better. Our solutions are developed by understanding the customer's situation and combining the current market conditions. Therefore, they are all targeted and can effectively solve problems of customers.
We only produce high-quality products. Welcome customers to contact customer service staff for consultation!
