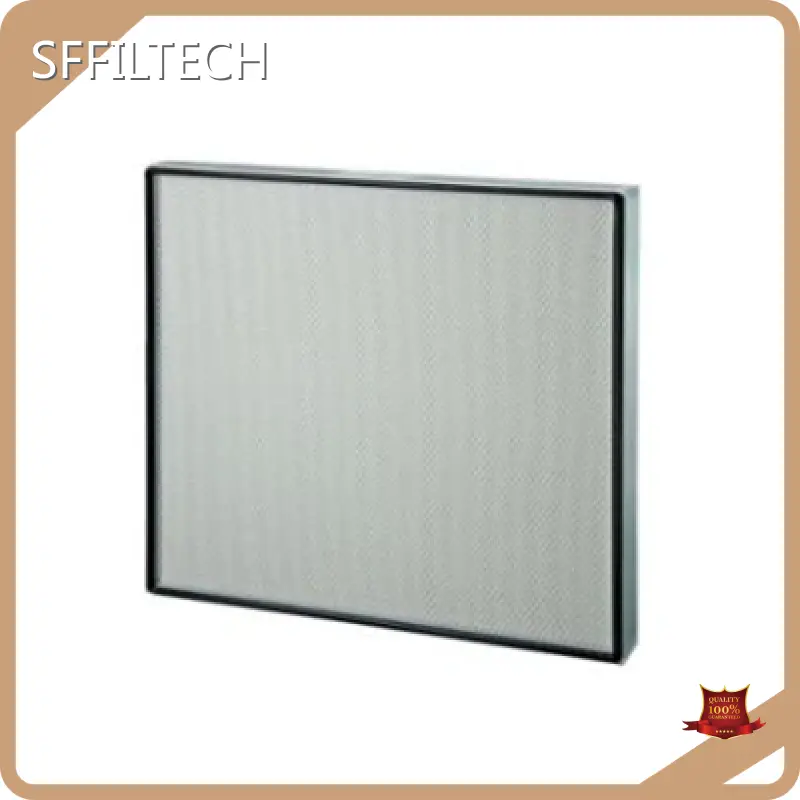

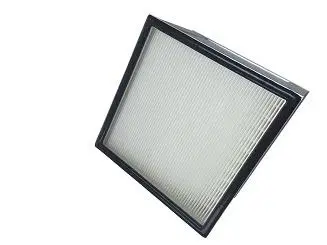

Ulpa Air Filter by SFFILTECH
Product details of the ulpa air filter
Product Overview
SFFILTECH ulpa air filter is available in numerous design styles. The wide used foreground of ulpa air filter is proved over a long period of time. The ulpa air filter produced by SFFILTECH is widely used in industry. In SHANGHAI SFFILTECH CO., LTD, the allocation of ulpa air filter resources and the application of technology have achieved the desired results.
Product Introduction
With a focus on quality, SFFILTECH pays great attention to the details of ulpa air filter.
Application:
Become final filter when cooperate with gel slots keel or FFU
Advantages
95 pleats/feet,20% higher than normal product,bring lower resistance and longer life
Ultra-fine glass fibre paper,good stability of filtration efficiency
Perfect structure of "V" shape,effectively reduce the system resistance
Light, compact structure
Double side retainers
Individually tested according to EN 1822
Specification
Type: High efficiency panel filter
Media: Glass fibre paper
Frame: Extruded and anodized aluminium(Sharp Edge)
Separator: Hot-melt beads
Sealant: Polyurethane
Recommended final pressure drop: 300Pa
Temperature: 90ºC maximum in continuous service
Different thickness filter in the different level of filtration efficiency, the relationship curves of initial resistance and airflow velocity.
Knife Mini-Pleated HEPA/ULPA Filter，Class H13 to U16
Thickness | Pressure drop （Pa）@0.45m/s | ||||
(Inches) | (mm) | H13 | H14 | U15 | U16 |
31/2 | 88 | 105 | 110 | 120 | 140 |
41/3 | 110 | 75 | 80 | 90 | 110 |
51/3 | 134 | 60 | 65 | 70 | 85 |
Dimensions vs Air flow
Dimensions (WxH) | Air Flow（m3/h） | |
(Inches) | (mm) | @0.45m/s |
20×20 | 484×484 | 380 |
24×12 | 610×305 | 300 |
24×24 | 610×610 | 600 |
25×25 | 630×630 | 643 |
30×24 | 762×610 | 750 |
36×30 | 915×762 | 1130 |
36×36 | 915×915 | 1350 |
48×24 | 1210×610 | 1200 |
| 48×30 | 1210×762 | 1500 |
| 48×36 | 1210×915 | 1800 |
| 48×48 | 1210×1210 | 2400 |
30×30 | 762×762 | 940 |
36×24 | 915×610 | 900 |
Model named rule
Engaged in creating a clean and fresh environment for people, Sffiltech is specialized in knife mini-pleated heap and ulpa filter. As one of the best manufacturers and suppliers, we can assure you the best quality and stable performance of our custom products. Please rest assured to buy.
