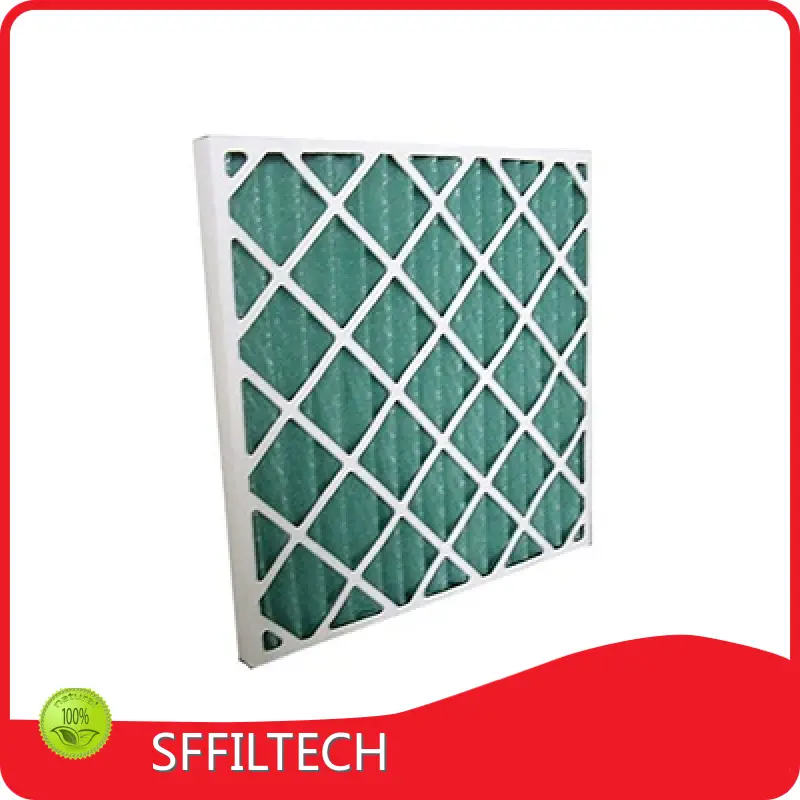

Product details of the dust pre filter
Product Introduction
The design style of SFFILTECH dust pre filter has been praised by customers. The unique dust pre filter performance has won warm praises from customers. With wide quality assurance system, SFFILTECH sets strict quality standards to ensure the quality of dust pre filter.
Specification:
Type: High performance disposable pleated panel filter
Media: Mixture of cotton and synthetic fiber
Frame: Rigid water resistant cardboard
Recommended final pressure drop: 250Pa
Temperature: 100ºC maximum in continuous service
Application: As a pre filter in air-condition system
Advantages
15 pleats/feet,50% filter efficienry higher than normal product
Mixture of cotton and synthetic fiber, ensure the stability of efficiency and dust holding capacity
Rigid Water resistant cardboard frame, which is from USA with high quality level
Fiber containing flame resistant component
Fully supported media bonded onto a wire support grid, get high mechanical strength
Unique tapered radial Pleat design, get the low pressure drop
Thickness Vs Efficiency vs pressure drop1.Odd sizes available
Thickness | Pressure drop(pa)@2.5m/s | ||
Inches | (mm) | G3 | G4 |
1 | 22 | 80 | 90 |
2 | 45 | 70 | 80 |
4 | 95 | 60 | 70 |
Dimensions vs Air flow
Dimensions(W*H) | Air flow(m3/h) | |
Inches | (mm) | @2.5m/s |
24*24 | 592*592 | 3400 |
24*12 | 592*287 | 1700 |
24*20 | 592*490 | 2800 |
20*20 | 490*490 | 2300 |
how to choose the heap filter?
2.Pressure drop
3.Frame: GZ galvanized steel,aluminum abs plastic
4.Filter efficiency
5.Width
6.Height
7.Frame thickness
8.Up side:gasket or not?
9.Sealing ring or not?
10.Down side:gasket or not?
11.Sealing ring or not?
Engaged in creating a clean and fresh environment for people, Sffiltech is specialized in pleated pre-filter with paper frame. As one of the best manufacturers and suppliers, we can assure you the best quality and stable performance of our custom products. Please rest assured to buy.
Company Advantage
• SFFILTECH keeps pace with the development trend of the Internet and runs a brand new business mode. We actively construct offline sales network as well as expand online sales channels. We have official stores on multiple mainstream E-commerce platforms. All these contribute to the rapid development of sales volume and wide sales range.
• Since the beginning in our company has accumulated a lot of experience in production and sales of products through the continuous development for years.
• Adhering to the service concept of 'customer is superior, service is first-class', our company is guided by the actual needs of consumers and wholeheartedly provides sincere service for consumers.
Welcome to contact us.
